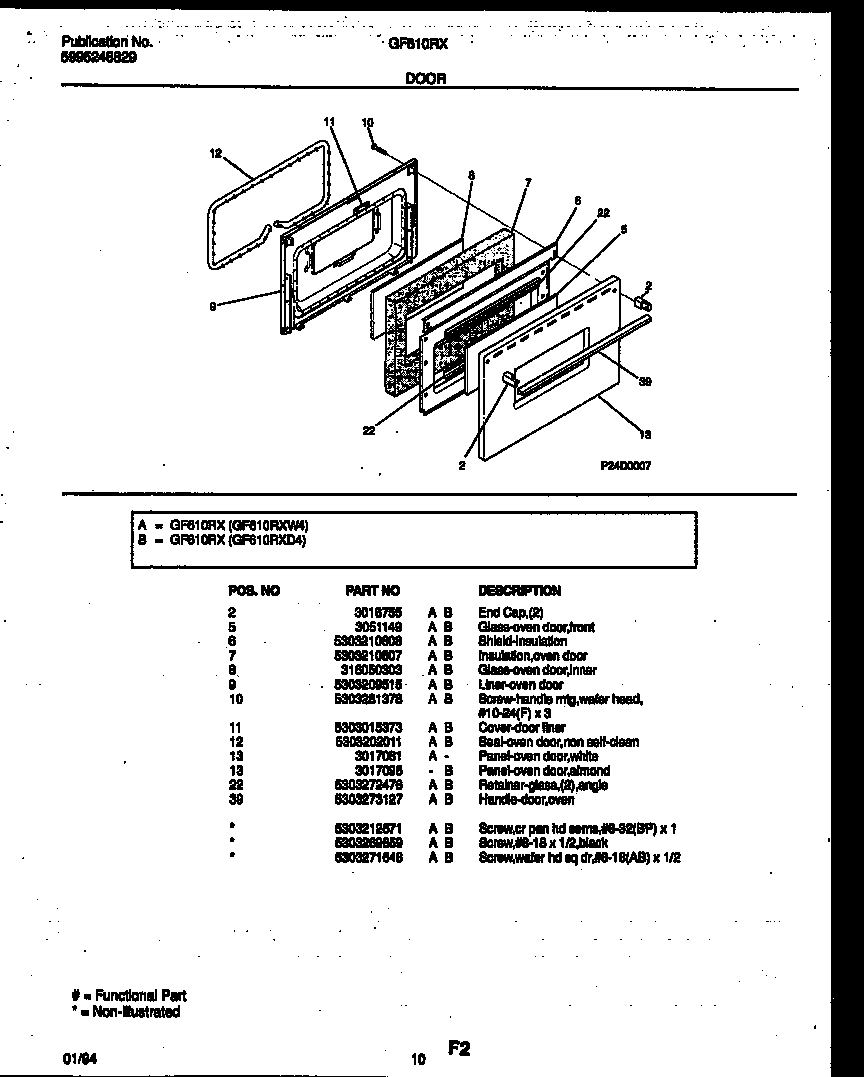

GF610RXD4 06 – DOOR PARTSadmin2025-04-26T08:57:03+00:00GF610RXD4 06 – DOOR PARTS
Products
| Position | Product |
|---|
| *86491 | SCREW, CR PAN HD SEMS, 8-32BP X 1.00 |
| *86491 | WCI 5303269859 |
| *86492 | 5303271648 Frigidaire Oven Screw |
| 2 | 316137003 Frigidaire Range / Cooktop End Cap |
| 5 | WCI 3051149 |
| 6 | SHIELD-INSULATION |
| 7 | INSULATION-OVEN DR |
| 8 | WCI 316050303 |
| 9 | WCI 5303209515 |
| 10 | SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 |
| 11 | WCI 5303015373 |
| 12 | 5303202011 Frigidaire Door Seal |
| 13 | PANEL, OVEN DOOR, ALMOND |
| 22 | Retainer,glass ,(2) ,angle |
| 39 | HANDLE-DOOR, OVEN |
