GF610RXW2 04 – BODY PARTS

GF610RXW2 04 – BODY PARTS

Written by

in

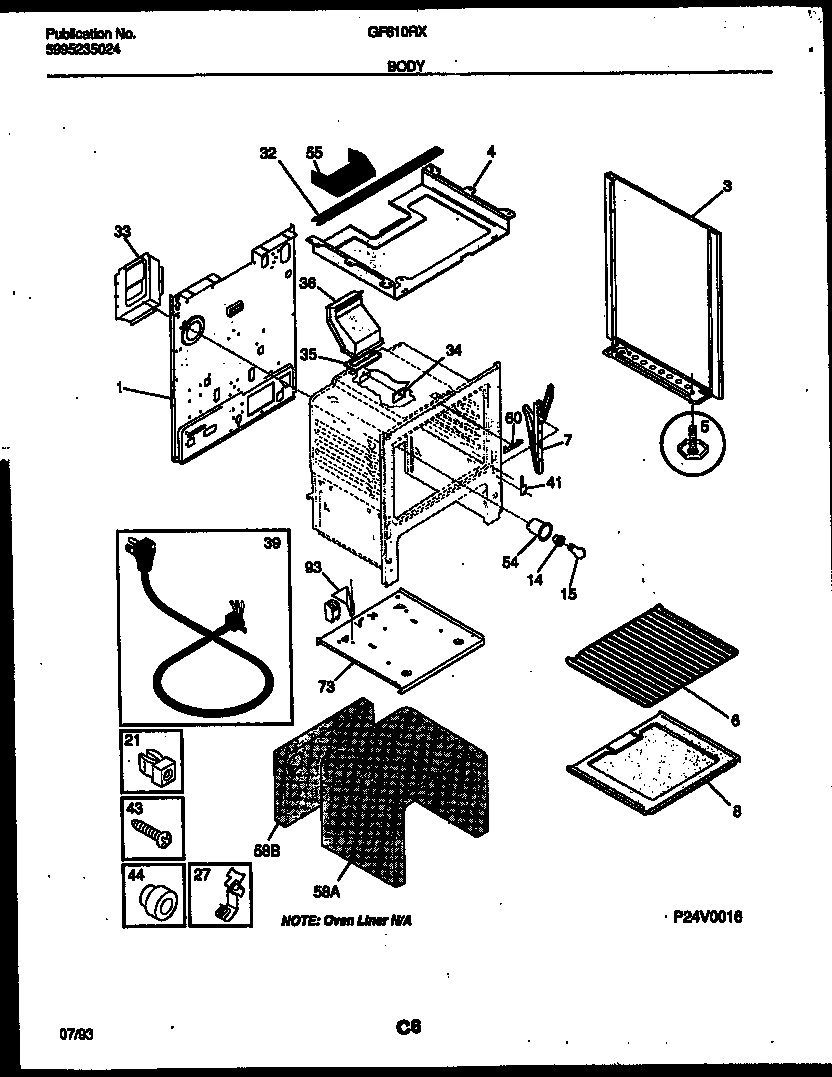

GF610RXW2 04 – BODY PARTS

Products

PositionProduct
*77117WCI 5303280614
*77117WCI 08067961
1WCI 3203082
3APNL-B/S-LH-WHITE
3PNL-B/S-RH-WHITE
4BURNER BOX BOTTOM
5BANTI-TIP KIT (NOT ILLUSTRATED)
5ANUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8BTTM-OVEN
8A316064600 Frigidaire Oven Support
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
32CHANNEL-BURNER BOX
33WCI 3131660
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 3131904
39ACOVER-POWER CORD, (NON-ILLUSTRATED)
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
54WCI 5303271606
55ASHIELD-FLUE, (NON-ILLUSTRATED)
55SHIELD-TOP (NON-ILLUSTRATED)
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
58AINSULATION, OVEN WRAPPER
60COVER-OVEN FRONT
73BASE-BROIL
