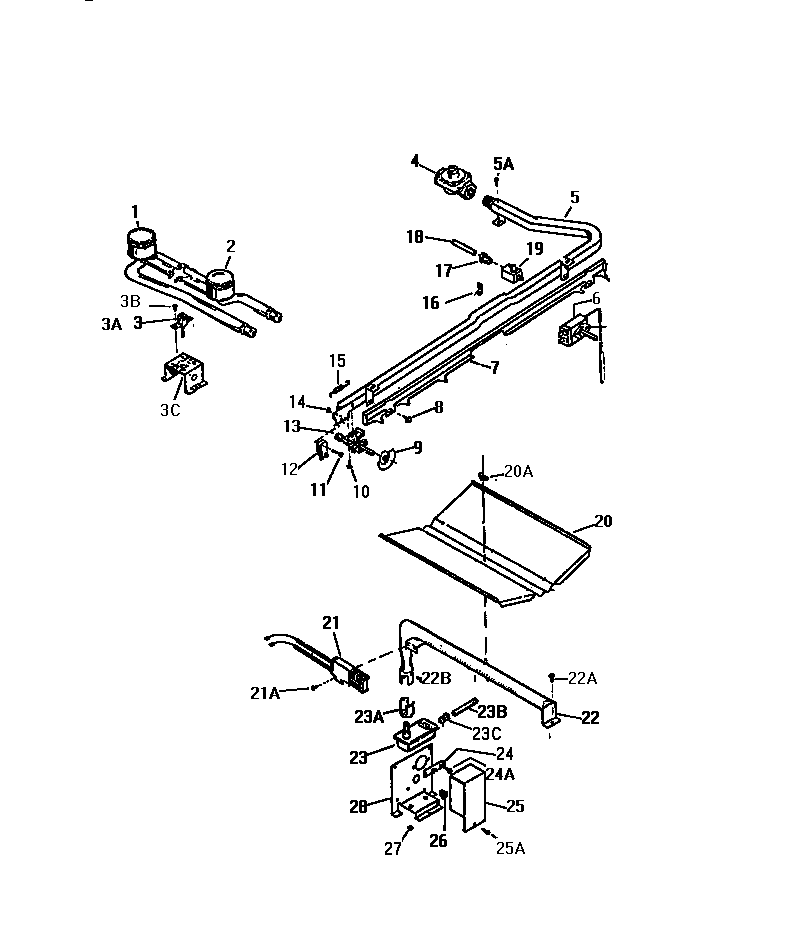

GF620HXD1 04 – BURNER ASSEMBLY

Products

Position	Product
1	WCI Q301865
3C	WCI Q301866
3	WCI Q301861
3A	WCI Q301864
4	5308007974 Frigidaire Pressure Regulator
5	WCI Q301855
6	WCI Q301858
7	WCI Q301857
8	WCI Q301839
9	WCI A22002000
10	WCI Q310002
11	SCREW
12	WCI Q301874
13	WCI Q301873
14	NUT
15	WCI Q301869
16	CLIP, CAP. TUBE
17	BUT - 3/8 LOXIT
19	VALVE
20A	WING NUT
20	WCI A9010000
21	5303935066 Frigidaire Oven Flat Igniter 17" Leads
21A	SCREW
22	BURNER
22B	SCREW
23A	SHUTTER
23B	WCI Q301867
23C	NUT
23	WCI Q301871
24	TERMINAL BLOCK
25A	WCI AP051056
25	VALVE COVER
26	WCI AP074001
27	WCI AP265008
28	SUPPORT
