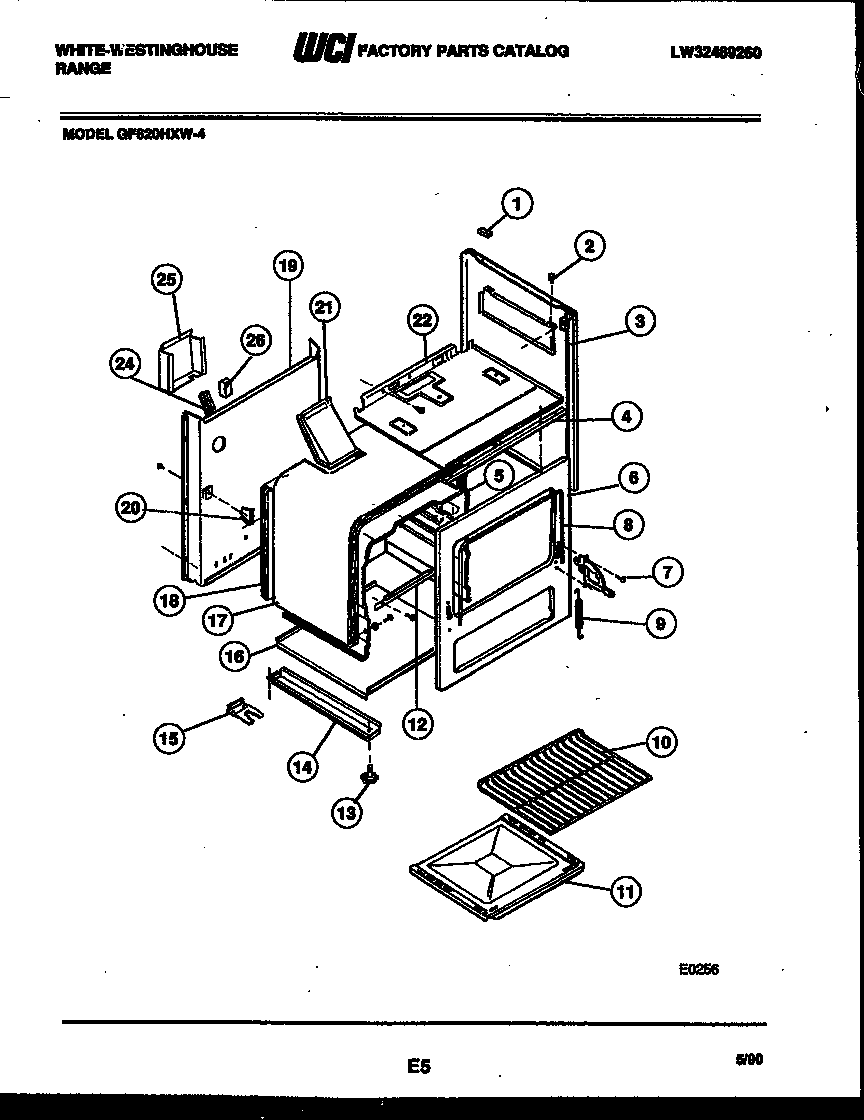

GF620HXW4 06 – BODY PARTS

Products

PositionProduct
1WCI 5303016129
2GROMMET
3BODYSIDE PANEL-WHITE (2)
4SUPPORT CONTROL PNL
5BWCI 3018347
5OVEN LINER-SIDE RH
5AOVEN LINER-SIDE LH
5CWCI 3018995
6WCI 3205578
7318348801 Frigidaire Oven Left Side Door Hinge
7AHINGE ASSY-RH
8DOOR SEAL
9SPRING-OVEN DR (2)
10OVEN RACK (2)
11WCI 3018282
12SUPPORT-OVEN BOTTOM
13LEG LEVELLER (4)
14RAIL-BASE
15BRACKET-INSTALLATION (2)
16WCI 3011645
17WCI 3017171
18WCI 3017172
19WCI 5303013340
20SUPPORT-REAR OVN (2)
21WCI 3017173
22WCI 3017174
23SHIELD-BURNER BOX RH
23ASHIELD-BURNER BOX LH
23BCLIP,BODYSIDE
24CHANNEL – MAIN WIRE
25WCI 08013953
265303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
