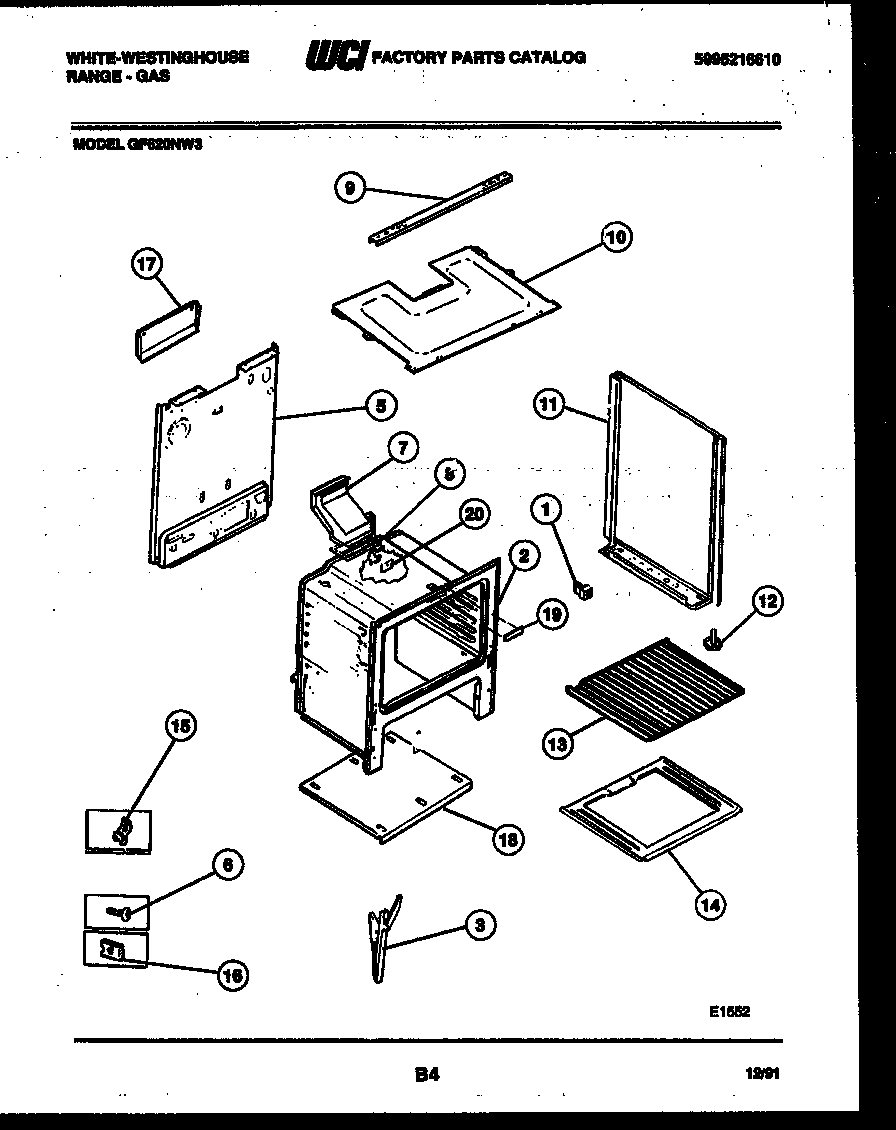

GF620NW3 07 – BODY PARTS

Products

PositionProduct
*58272WCI 3131192
*582723051218 Frigidaire Oven Plate
*582725304515659 Frigidaire Oven Power Cord
*58272WCI 3131660
*58272WCI 08067961
*58272DIAGRAM, WIRING (NOT FOR PURCHASE)
*58272COVER-POWER CORD, (NON-ILLUSTRATED)
1SPACER-BODYSIDE, (8)
3CHANL DR HNG (2)
5WCI 3203082
6316282700 Frigidaire Oven Screw
7316204402 Frigidaire Oven Flue
8316542102 Frigidaire Flue Gasket
9CHANNEL-BURNER BOX
10BURNER BOX BOTTOM
11PNL-B/S-RH-WHITE
11PNL-B/S-LH-WHITE
12SCREW-LEVELING
13316067902 Frigidaire Oven Rack
14BINSUL – OVEN BACK (NON-ILLUSTRATED)
14BTTM-OVEN
14AINSULATION, OVEN WRAPPER
14CWCI 08010570
15WCI 08010556
163203010 Frigidaire Clip
17A316064600 Frigidaire Oven Support
17COVER-VENT
18WCI 5303270160
19AANTI-TIP KIT (NOT ILLUSTRATED)
19COVER-OVEN FRONT
19BSHIELD-FLUE, (NON-ILLUSTRATED)
20COVER-IGNITOR
