GF625LW0 05 – BROILER DRAWER PARTS

GF625LW0 05 – BROILER DRAWER PARTS

Written by

in

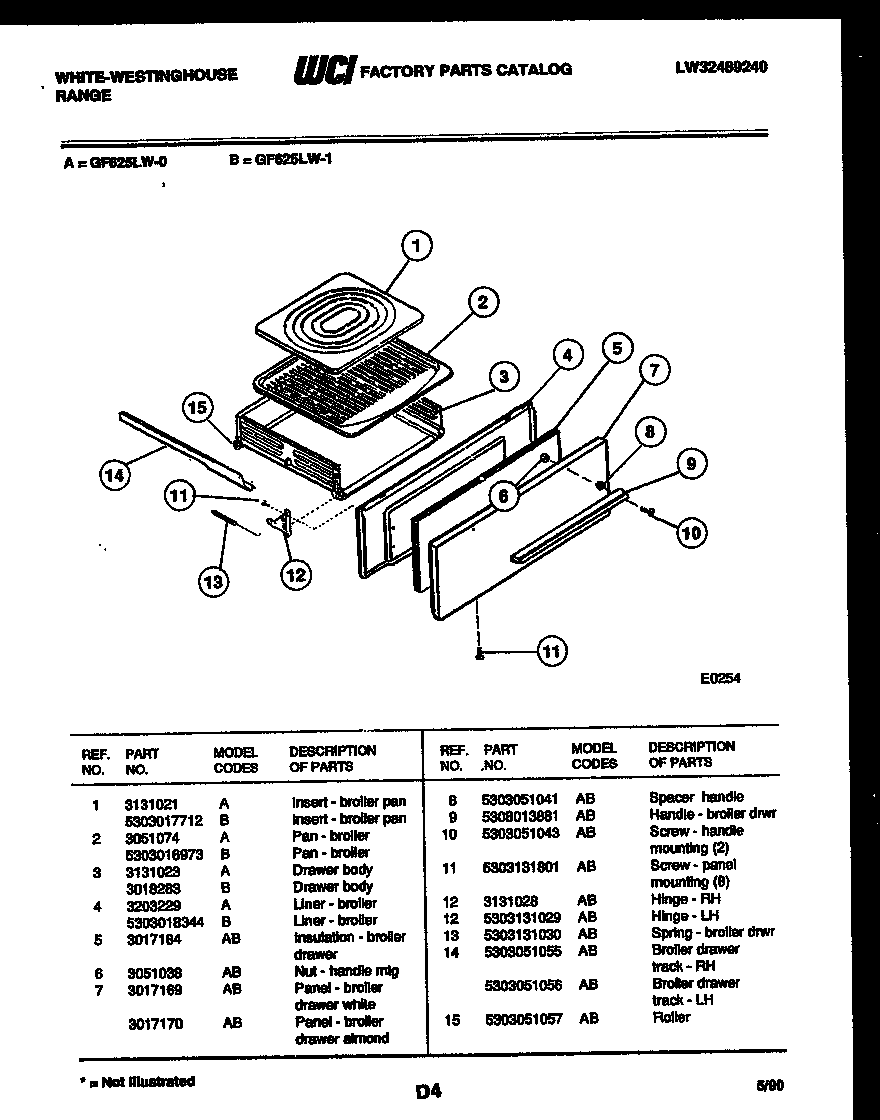

GF625LW0 05 – BROILER DRAWER PARTS

Products

PositionProduct
1WCI 3131021
2BROILER-PAN
3WCI 3131023
4LINER BROILER DRAWER
5WCI 3017184
65303013272 Frigidaire Oven Nut
7PANEL – BLACK
8SPACER HANDLE
9WCI 5308013881
105303292012 Frigidaire Oven Screw
11SCREW, 10 X 3/8
12HINGE – LH
12HINGE – RH
13SPRING
14TRACK ASSY-RH
14ATRACK ASSY-LH
15ROLLER
