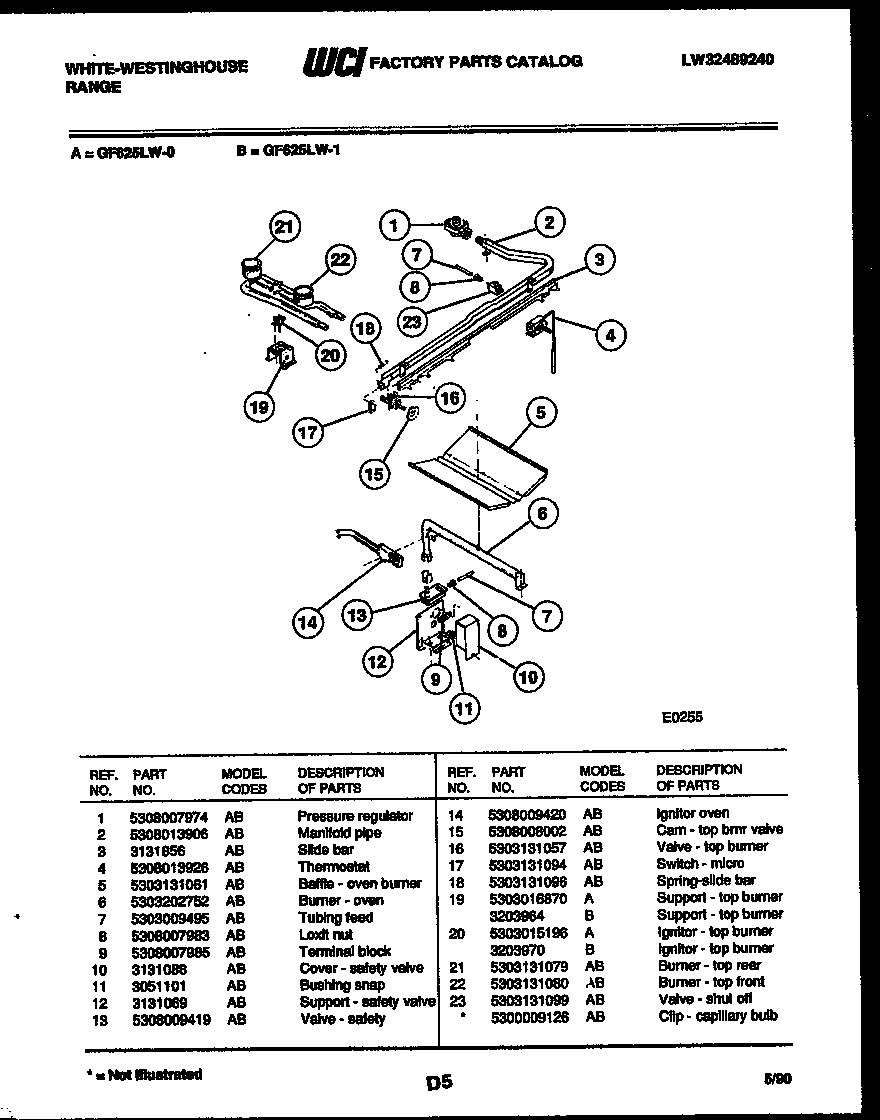

GF625LW0 06 – BURNER, MANIFOLD AND GAS CONTROL

GF625LW0 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

GF625LW0 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*30162WCI 5300009126
15308007974 Frigidaire Pressure Regulator
2MANIFOLD
3SLIDE BAR
4WCI 5308013926
5BAFFLE-OVEN BURNER
6WCI 5303202752
7TUBE-OVEN FEED
8LOCK NUT
9TERMINAL BLOCK
10COVER – OVEN SAFETY VALVE
11SNAP – BUSHING
12SUPPORT-OVEN SAFETY VALVE
13WCI 5308009419
145303935066 Frigidaire Oven Flat Igniter 17" Leads
15CAM-VALVE
16WCI 5303131057
17WCI 5303131094
18SPRING – SLIDE BAR
19SUPPORT-TOP BURNER
20IGNITOR-TOP BURNER
21Burner,top ,rear
22BURNER-TOP FRONT
23WCI 5303131099
