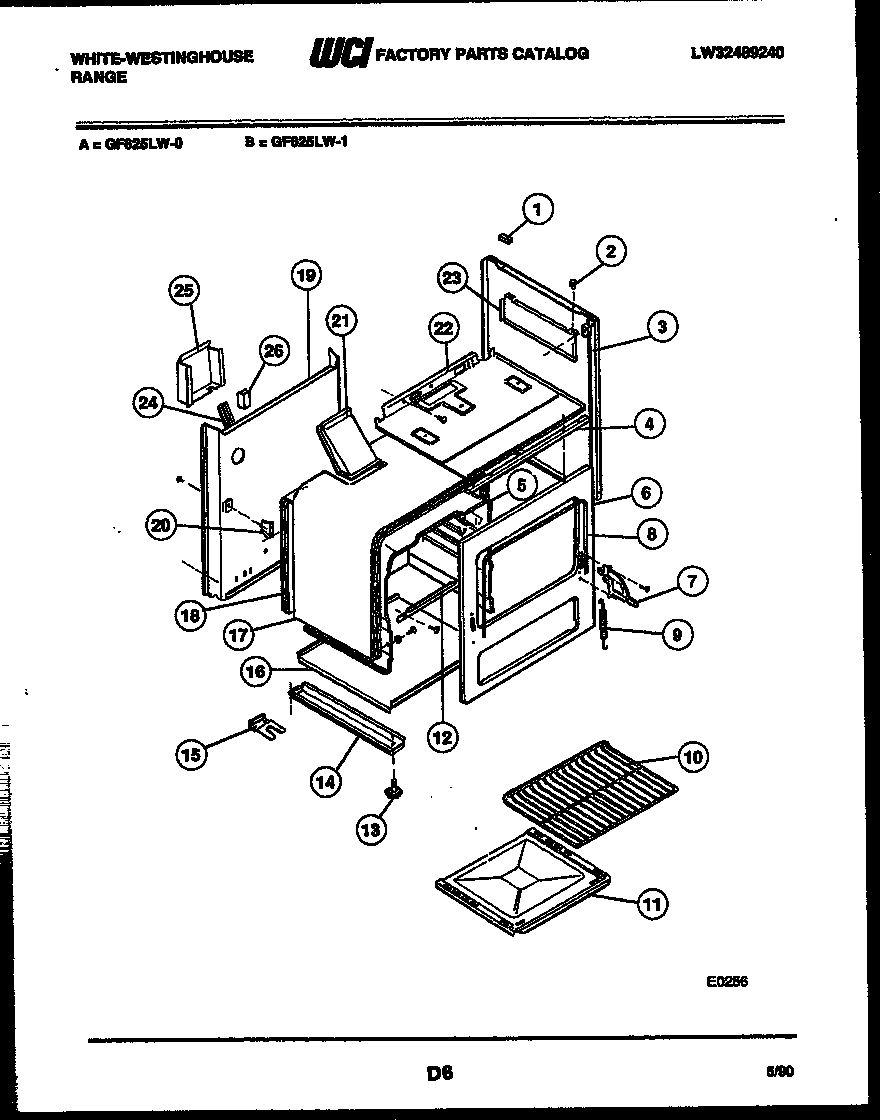

GF625LW0 07 – BODY PARTS

Products

Position	Product
1	WCI 5303016129
2	GROMMET
3	BODYSIDE PANEL-WHITE (2)
4	SUPPORT CONTROL PNL
5C	LINER (BACK)
5B	LINER (TOP)
5	LINER RT SIDE
5A	LINER LT SIDE
6	WCI 5303207299
7A	HINGE ASSY-RH
7	318348801 Frigidaire Oven Left Side Door Hinge
8	DOOR SEAL
9	SPRING-OVEN DR (2)
10	OVEN RACK (2)
11	LINER BTTM
12	SUPPORT-OVEN BOTTOM
13	LEG LEVELLER (4)
14	RAIL-BASE
15	BRACKET-INSTALLATION (2)
16	WCI 3011645
17	WCI 3017171
18	WCI 3017172
19	WCI 5303013340
20	SUPPORT-REAR OVN (2)
21	WCI 3017173
22	WCI 3017174
23	SHIELD-BURNER BOX RH
23A	SHIELD-BURNER BOX LH
23B	CLIP,BODYSIDE
24	CHANNEL – MAIN WIRE
25	WCI 08013953
26	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
