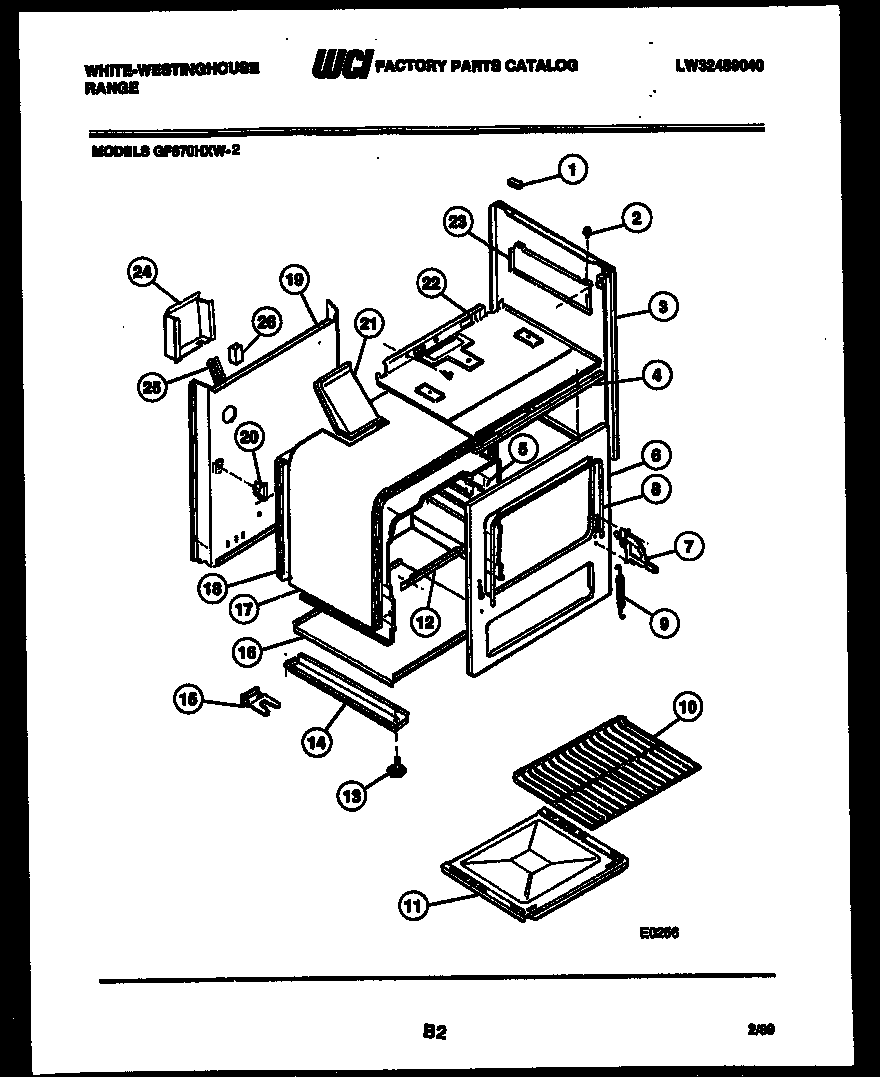

GF670HXW2 05 – BODY PARTS

Products

Position	Product
1	GROMMET MAIN TOP
2	GROMMET
3	BODYSIDE (WHITE) LH & RH
4	SUPPORT CONTROL PNL
5C	WCI 3202933
5B	WCI 3018711
5A	WCI 3018710
5	WCI 3018709
6	WCI 3017790
7A	CAM-DOOR RIGHT HAND
7	318348801 Frigidaire Oven Left Side Door Hinge
8	WCI 08008022
9	SPRING – OVEN DOOR
10	RACK-OVEN
11	WCI 3018282
12	SUPPORT-OVEN BOTTOM
13	WCI 3051080
14	BASE-RAIL (2)
15	BRACKET-INSTALLATION (2)
16	WCI 3011645
17	WCI 3017171
18	WCI 3017172
19	WCI 3013340
20	SUPPORT-REAR OVN (2)
21	WCI 3017173
22	WCI 3017174
23A	WCI 3131054
23B	CLIP BACKSPLASH CORNER
23	WCI 3131053
24	WCI 08008357
25	CHANNEL – MAIN WIRE
26	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
