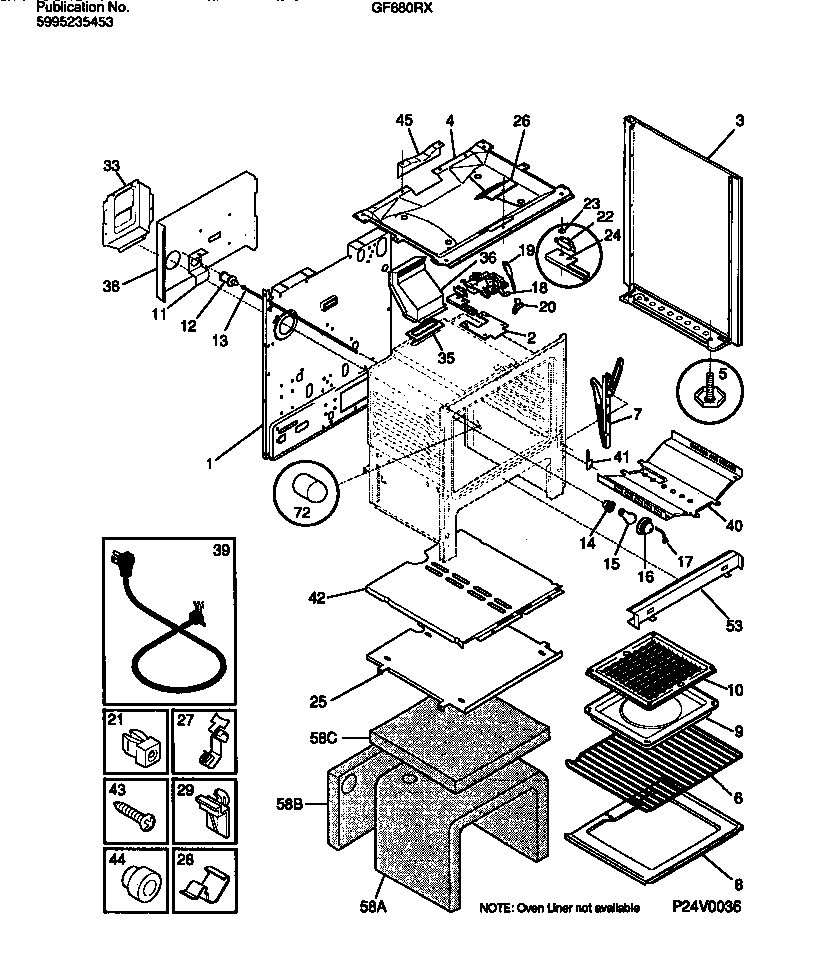

GF680RXW2 04 – BODY

Products

PositionProduct
*52763FASTENER-EDGE MTG (NOT ILLUSTRATED)
*52762SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*52764WCI 08067961
1WCI 3203082
2SHIELD-OVN TOP
3AWCI 530326919
3BWCI 08067992
3PNL-B/S-RH-WHITE
4WCI 3011597
5SCREW-LEVELING
5BANTI-TIP KIT (NOT ILLUSTRATED)
5ANUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8A316064600 Frigidaire Oven Support
8BTTM-OVEN
9PAN-BROILER
10WCI 5303131356
11WCI 5303131289
12SWITCH-OVEN LITE DOOR
13WCI 5303269501
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18ASHIELD-LATCH (NON-ILLUSTRATED)
18WCI 5303015453
19WCI 5303131357
20WCI 3203218
20AWCI 08013188
21SPACER-BODYSIDE, (8)
22ASTUD SPACER (2) (NON-ILLUSTRATED)
22SWITCH-LATCH
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3131313
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 3131931
38WCI 316014301
395304515659 Frigidaire Oven Power Cord
40WCI 3200836
41WCI 3131570
42SHIELD-HEAT UPPER
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
53A08067973 Frigidaire 0 Insulation
53SHIELD-FRONT
58AINSULATION, OVEN WRAPPER
58CINSULATION, OVEN TOP
58BINSULATION OVEN BACK (NON-ILLUSTRATED)
72COVER-LIGHT/SWITCH ROD
