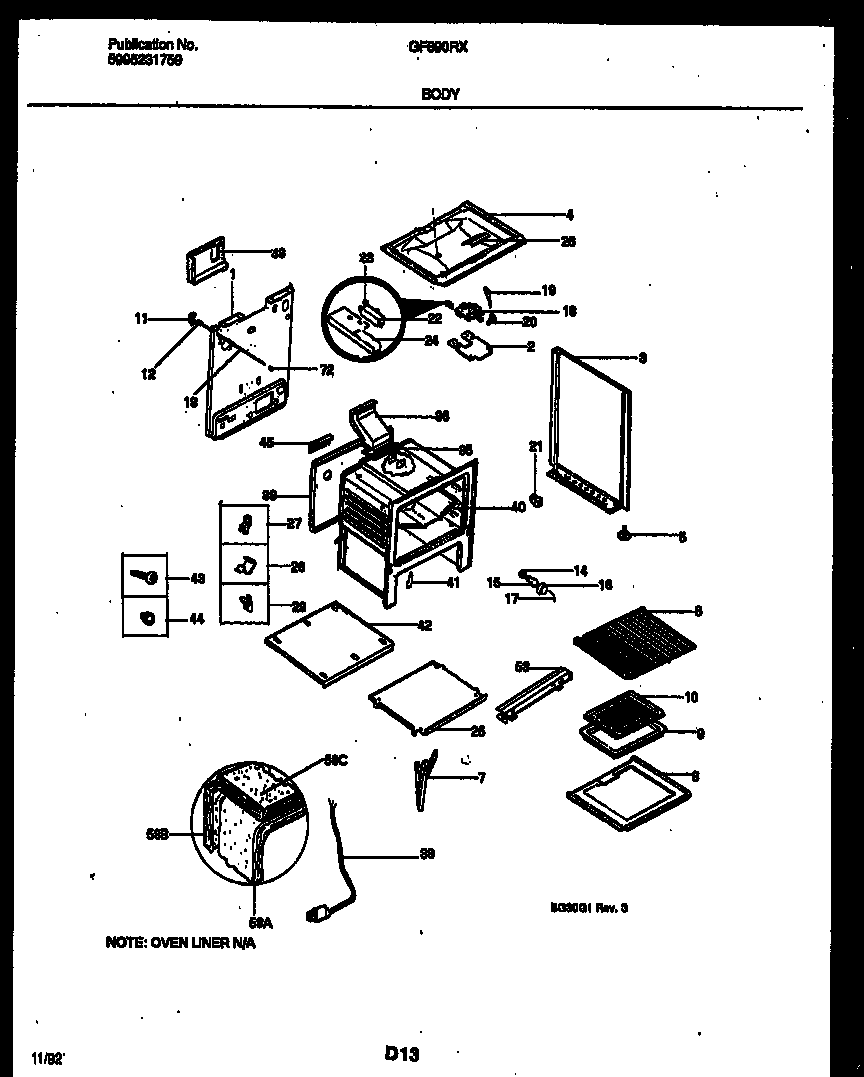

GF690RXD2 04 – BODY PARTS

Products

Position	Product
1	WCI 3203082
2	SHIELD-OVN TOP
2	3203010 Frigidaire Clip
3	WCI 5303269543
3B	WCI 5303269545
3C	WCI 08067992
4	WCI 3011597
5A	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5	SCREW-LEVELING
5B	ANTI-TIP KIT (NOT ILLUSTRATED)
6	316067902 Frigidaire Oven Rack
7	WCI 316007002
8A	316064600 Frigidaire Oven Support
8	BTTM-OVEN
9	PAN-BROILER
10	WCI 5303131356
11	WCI 5303131289
12	SWITCH-OVEN LITE DOOR
13	WCI 5303269501
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	RETAINER-GLASS
18A	SHIELD-LATCH (NON-ILLUSTRATED)
18	WCI 5303015453
19	WCI 5303131357
20A	WCI 08013188
20	WCI 3203218
21	SPACER-BODYSIDE, (8)
22	SWITCH-LATCH
22A	STUD SPACER (2) (NON-ILLUSTRATED)
23	FSTNR-PUSH ON
24	SHIELD-LATCH
25	WCI 3131313
26	WCI 08067757
27	5303284616 Frigidaire Range Bulb Clip Thermostat
28	CLIP-WIRE
29	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
33	SHIELD, REAR WALL
35	316542102 Frigidaire Flue Gasket
36	WCI 3131931
38	WCI 316014301
39	5304515659 Frigidaire Oven Power Cord
40	WCI 3200836
41	WCI 3131570
42	SHIELD-HEAT UPPER
43	316282700 Frigidaire Oven Screw
44	3131903 Frigidaire Door/Drawer Bumper
45	WCI 08068018
53	SHIELD-FRONT
53A	08067973 Frigidaire 0 Insulation
58B	INSULATION OVEN BACK (NON-ILLUSTRATED)
58A	INSULATION, OVEN WRAPPER
58C	INSULATION, OVEN TOP
72	COVER-LIGHT/SWITCH ROD
72012	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
72013	FASTENER-EDGE MTG (NOT ILLUSTRATED)
72013	WCI 08067961
72013	WCI 316002928
