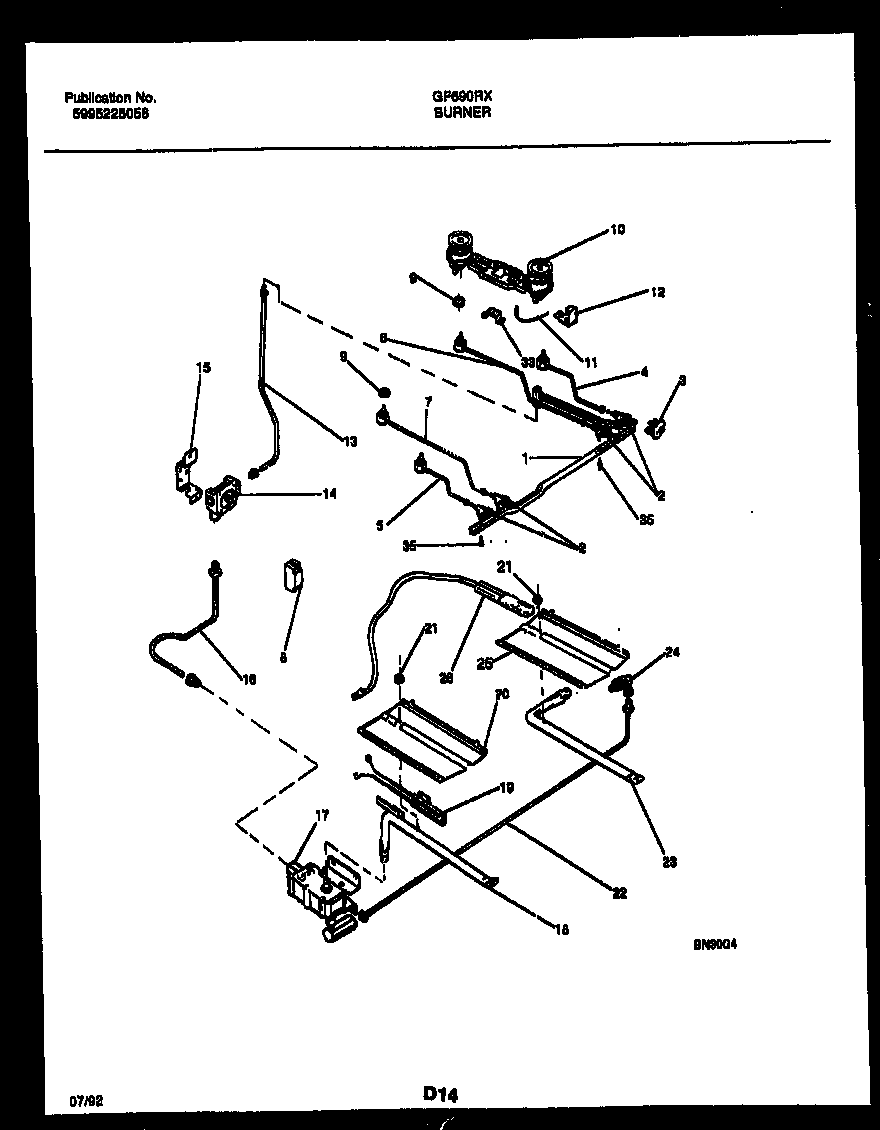

GF690RXW1 03 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1WCI 5303271375
2VALVE, TOP, 2 POS, (4)
3WCI 316032001
4WCI 5303283665
5WCI 5303283666
6WCI 5303283667
7WCI 5303283668
85303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
9NUT, SPECIAL
10BURNER-TOP-DOUBLE
11IGNITER-TOP BURNER, BASE, (2)
123016993 Frigidaire Oven Retainer
13TUBE-ALUM 3/8 REG/MANIFOLD PIPE
145303935125 Frigidaire Pressure Regulator
15316091600 Frigidaire Oven Bracket
16TUBE-VALVE TO REGUL
175303208499 Frigidaire Safety Gas Valve
18WCI 3131290
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20BAFFLE-OVN BURNER
215303013272 Frigidaire Oven Nut
22TUBE-VALVE TO MIXER ELBOW
23WCI 08067935
24WCI 5303208640
25WCI 5303210379
265303935068 Frigidaire Flat Igniter
33BRACKET BURNER MTG
35316048200 Frigidaire Oven Screw
