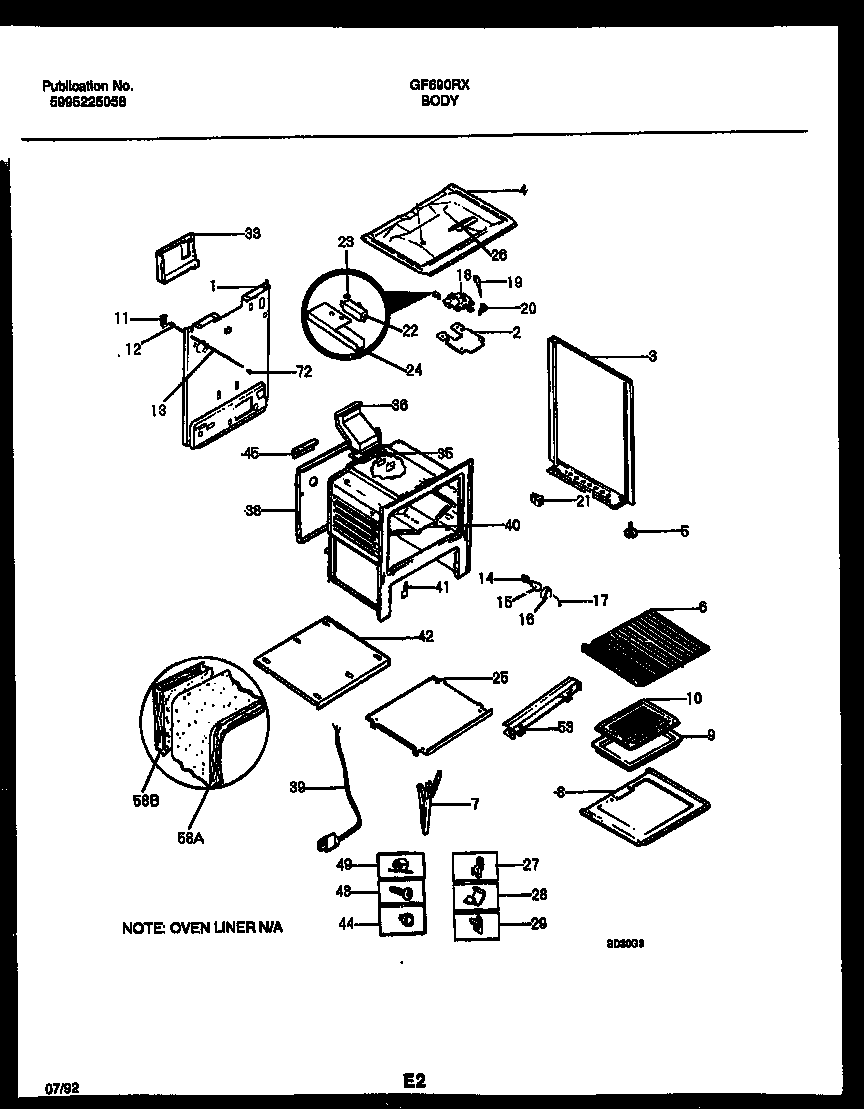

GF690RXW1 04 – BODY PARTS

GF690RXW1 04 – BODY PARTS

Written by

in

GF690RXW1 04 – BODY PARTS

Products

PositionProduct
1WCI 3203082
2SHIELD-OVN TOP
3CFASTENER-EDGE MTG (NOT ILLUSTRATED)
3PNL-B/S-RH-WHITE
3BSHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3DWCI 08067992
3APNL-B/S-LH-WHITE
4WCI 3011597
5SCREW-LEVELING
5BNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5AANTI-TIP KIT (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7A3203010 Frigidaire Clip
7WCI 316007002
8A316064600 Frigidaire Oven Support
8BTTM-OVEN
9PAN-BROILER
10WCI 5303131356
11WCI 5303131289
12SWITCH-OVEN LITE DOOR
13WCI 5303269501
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18WCI 5303015453
18ASHIELD-LATCH (NON-ILLUSTRATED)
19WCI 5303131357
20WCI 3203218
20AWCI 08013188
21SPACER-BODYSIDE, (8)
22ASTUD SPACER (2) (NON-ILLUSTRATED)
22SWITCH-LATCH
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3131313
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 3131931
38WCI 316014301
395304515659 Frigidaire Oven Power Cord
39AWCI 08067961
40WCI 3200836
41WCI 3131570
42SHIELD-HEAT UPPER
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
53A08067973 Frigidaire 0 Insulation
53SHIELD-FRONT
58CINSULATION, OVEN TOP
58AINSULATION, OVEN WRAPPER
58BINSULATION OVEN BACK (NON-ILLUSTRATED)
72COVER-LIGHT/SWITCH ROD
