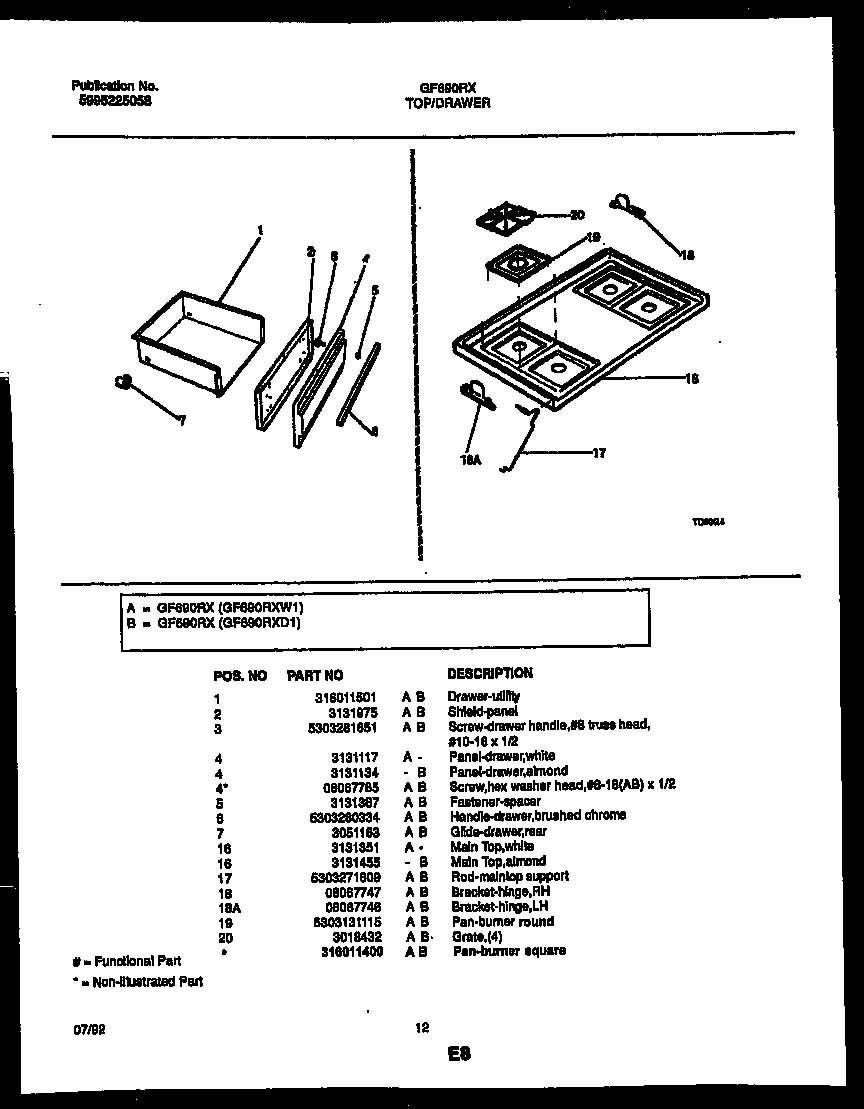

GF690RXW1 07 – COOKTOP AND DRAWER PARTS

Products

Position	Product
*66491	WCI 316011400
1	DRAWER-UTILITY
2	SHIELD-PNL
3	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	PNL-DRAWER (WHTE)
5	FSTNR, SPACER (2)
6	HANDLE
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16	WCI 3131351
17	ROD-MAIN SUPPORT (2)
18A	BRACKET-HINGE,MAIN TOP LH
18	BRACKET-HINGE,MAIN TOP RH
19	5303131115 Frigidaire Range Chrome Drip Bowl, 8"
20	GRATE (4)
