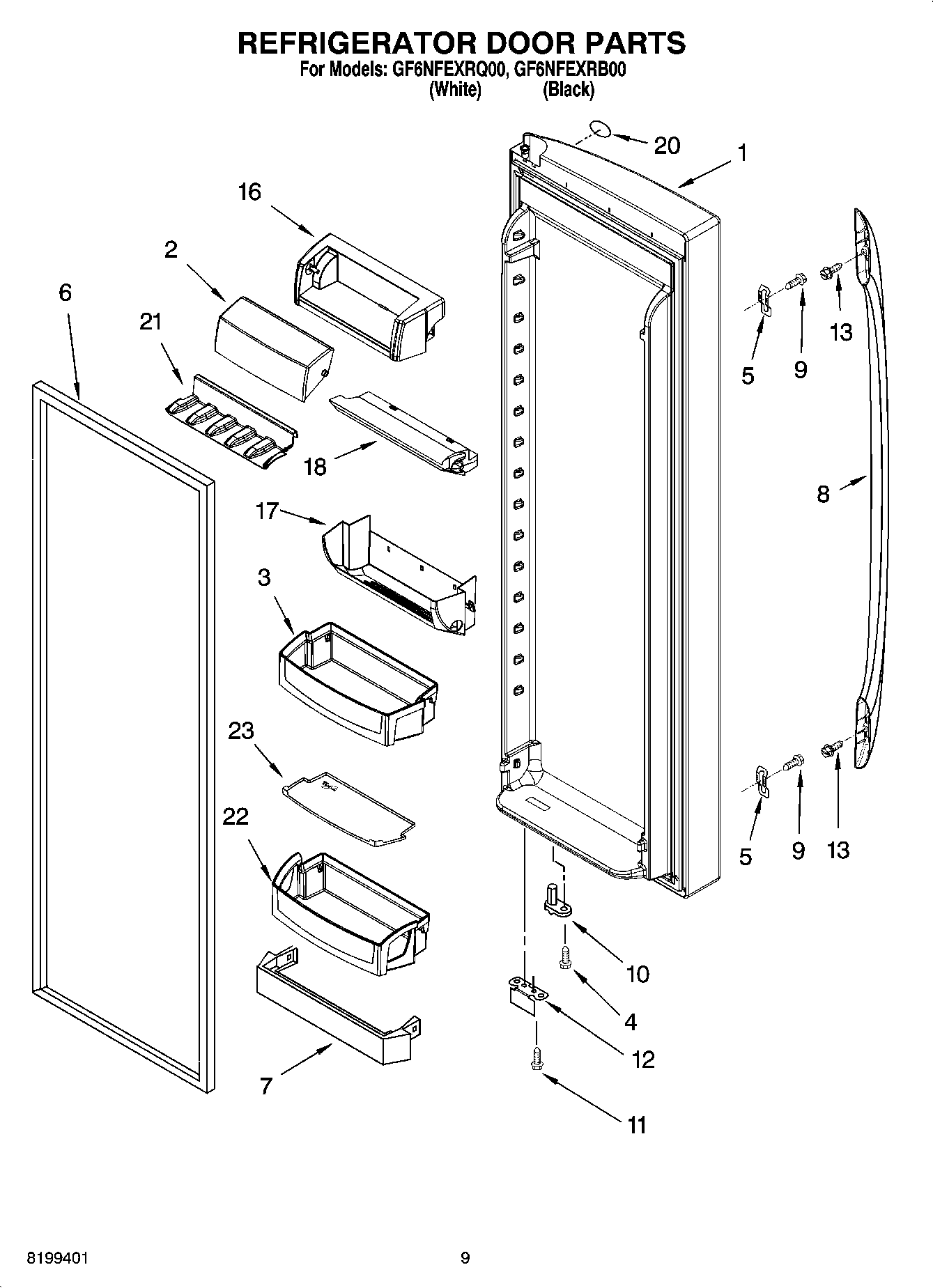

GF6NFEXRQ00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (White)
1	Refrigerator Door (Includes Item 6) (Black)
2	Dairy Door
3	Door Bin (3)
4	WP3400012 Whirlpool Refrigerator Screw
5	WP2255411 Whirlpool Refrigerator Clip
6	2159075 Whirlpool Door Gasket Seal
6	2159083 Whirlpool Gasket Door
7	WP2318736 Whirlpool Refrigerator Door Trim
8	Handle (Black)
8	Handle (Includes 21) (White)
9	WP489491 Whirlpool Refrigerator Screw
10	WP2182179 Whirlpool Cam Closer
11	WP489483 Whirlpool Screw
12	Bracket, Door Stop (Black)
12	Bracket, Door Stop (Chrome)
13	SCREW
16	Door Compartment
17	Frame, Can Rack
18	Air Diffuser Asm
20	Nameplate
21	Floor, Can Rack
22	Door Bin
23	Water Bottle
23	Mat, Bin
23	FOLLOWING PARTS NOT ILLUSTRATED
