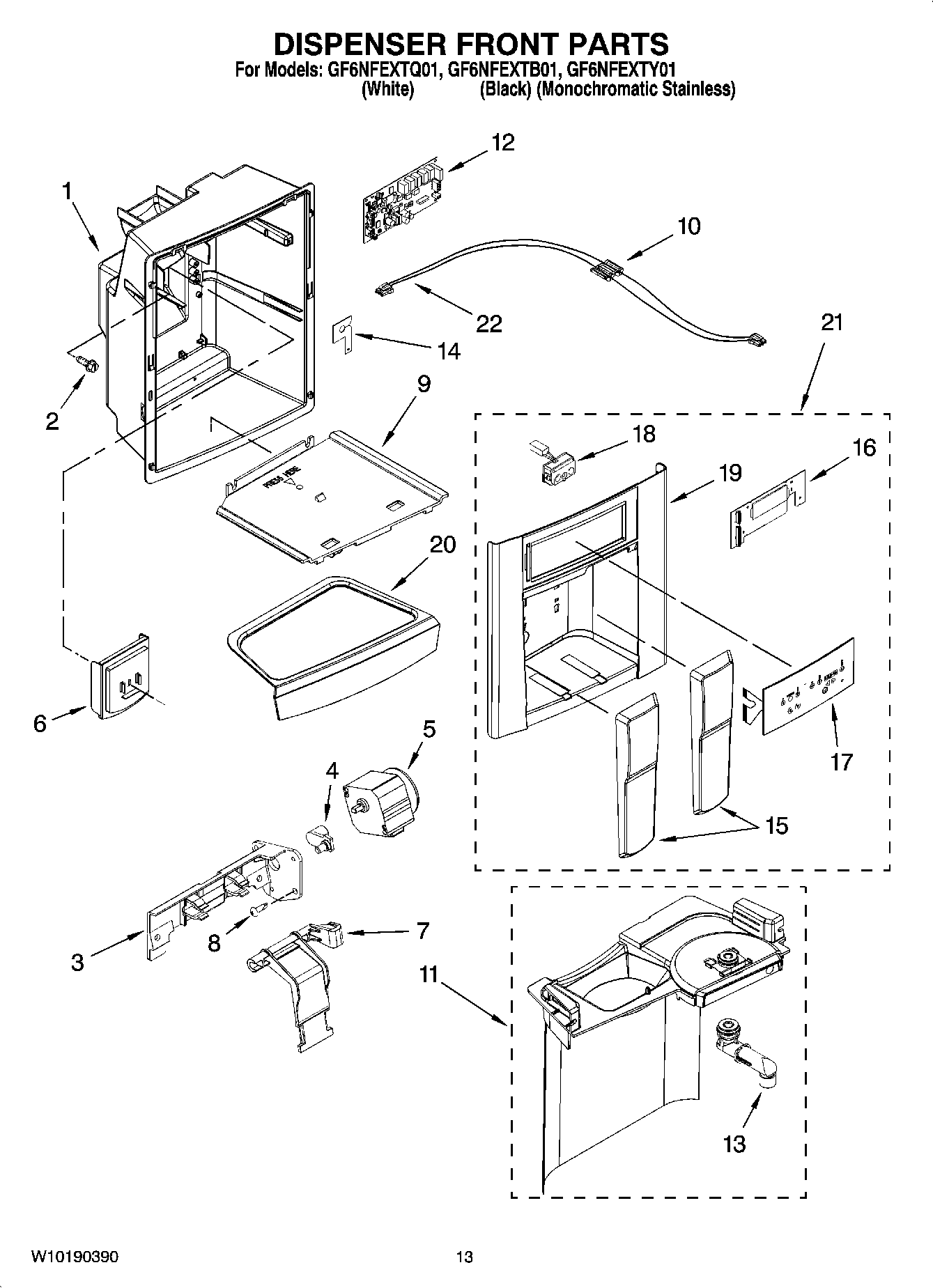

GF6NFEXTB01 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	WP939101 Whirlpool Refrigerator Plate
3	WP2305202 Whirlpool Refrigerator Bracket
4	WP2305242 Whirlpool Refrigerator Connector
5	WPW10184813 Whirlpool Refrigerator Motor
6	WP2305258 Whirlpool Dispenser Door Assembly
7	WP2305204 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	Grille, Slide (Apollo Grey)
9	Grille, Slide (White)
9	Grille, Slide (Black)
10	Ferrite Bead
11	Separator Assembly (White)
11	Separator Assembly (Universal Silver)
11	Separator Assembly (Black)
12	WP2303843-includeCORE Whirlpool WP2303843 Refrigerator Electronic Control Board + Core
13	Spigot
14	2305447 Whirlpool Refrigerator Clip
15	Pad, Ice & Water (For Monochromatic Stainless Model)
15	Pad, Ice & Water (For Black Model)
15	Pad, Ice & Water (For White Model)
16	2305219 Whirlpool Refrigerator Cover
17	Overlay, Front Cover (Not Available Order 21)
18	LED Assembly
19	Front Cover, Housing (Not Available, Order 21)
20	Tray, Housing (White)
20	Tray, Housing (Black)
20	Tray, Housing (Universal Silver)
21	Front Cover Assembly (Includes Items 15, 16, 17, 18 & 19) (Black)
21	Front Cover Assembly (Includes Items 15, 16, 17, 18 & 19) (Universal Silver)
21	Front Cover Assembly (Includes Items 15, 16, 17, 18 & 19) (White)
22	WPL 2187814
