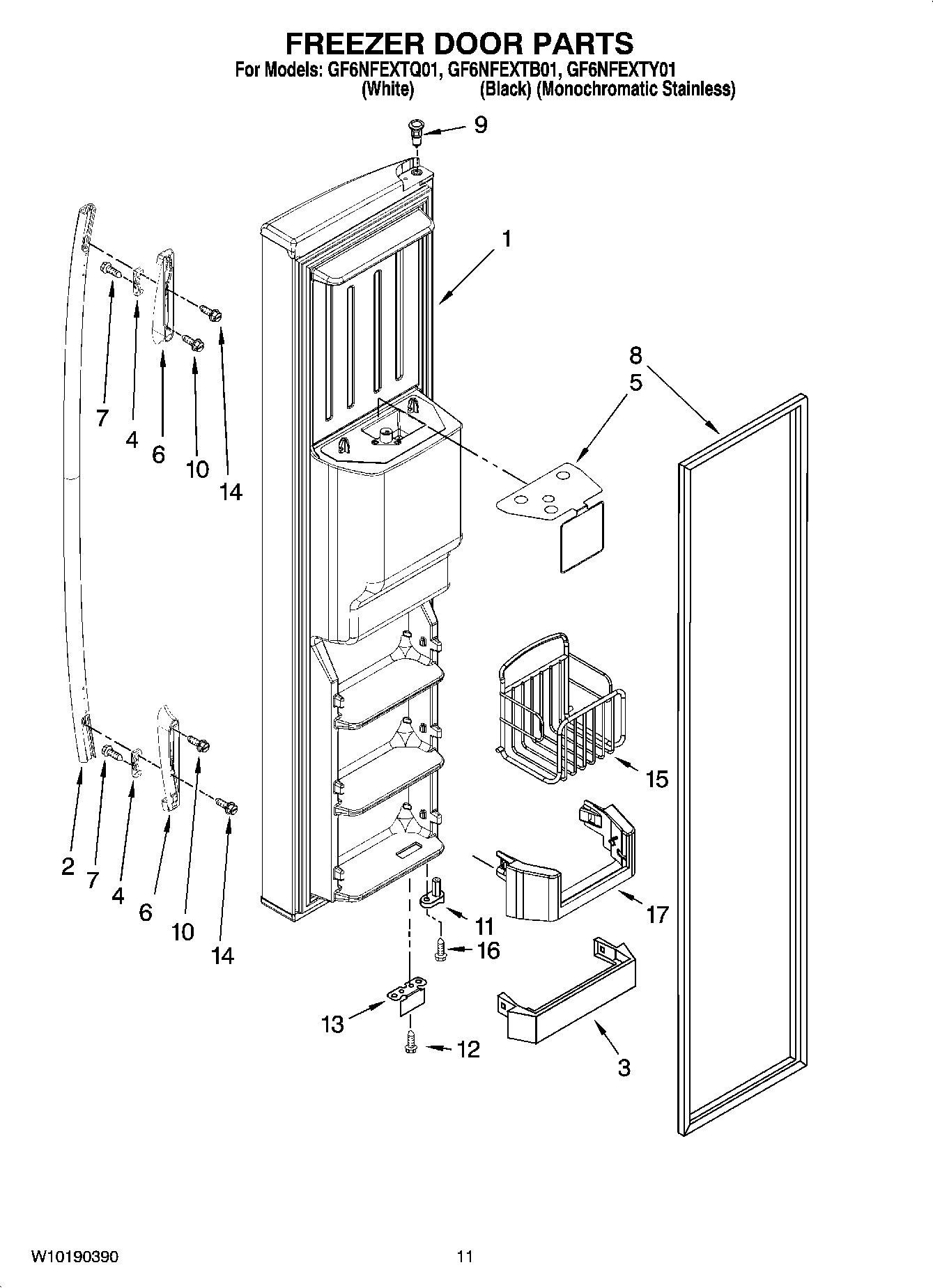

GF6NFEXTQ01 07 – FREEZER DOOR PARTS

Products

Position	Product
	Wire Assembly, Freezer Door
	Following Parts Not Illustrated
	Tube, Water Dispenser
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless Steel)
2	Handle (Black)
2	Handle (Universal Silver)
2	Handle (White)
3	WP2171157 Whirlpool Shelf Trim
4	WP2255411 Whirlpool Refrigerator Clip
5	Safety Barrier
6	Endcap, Handle (Stainless)
6	Endcap, Handle (Black)
6	Endcap, Handle (White)
7	WP489491 Whirlpool Refrigerator Screw
8	2159082 Whirlpool Freezer Door Gasket Black
8	2159074 Whirlpool Door Gasket Seal
9	WP2182181 Whirlpool Refrigerator Thimble
10	SCREW
11	WP2223752 Whirlpool Refrigerator Door Cam
12	WP489483 Whirlpool Screw
13	Bracket, Door Stop (Black)
13	Bracket, Door Stop (Chrome)
14	SCREW
15	Basket, Tilt Out
16	WP3400012 Whirlpool Refrigerator Screw
17	TRIVET, TILT-OUT
