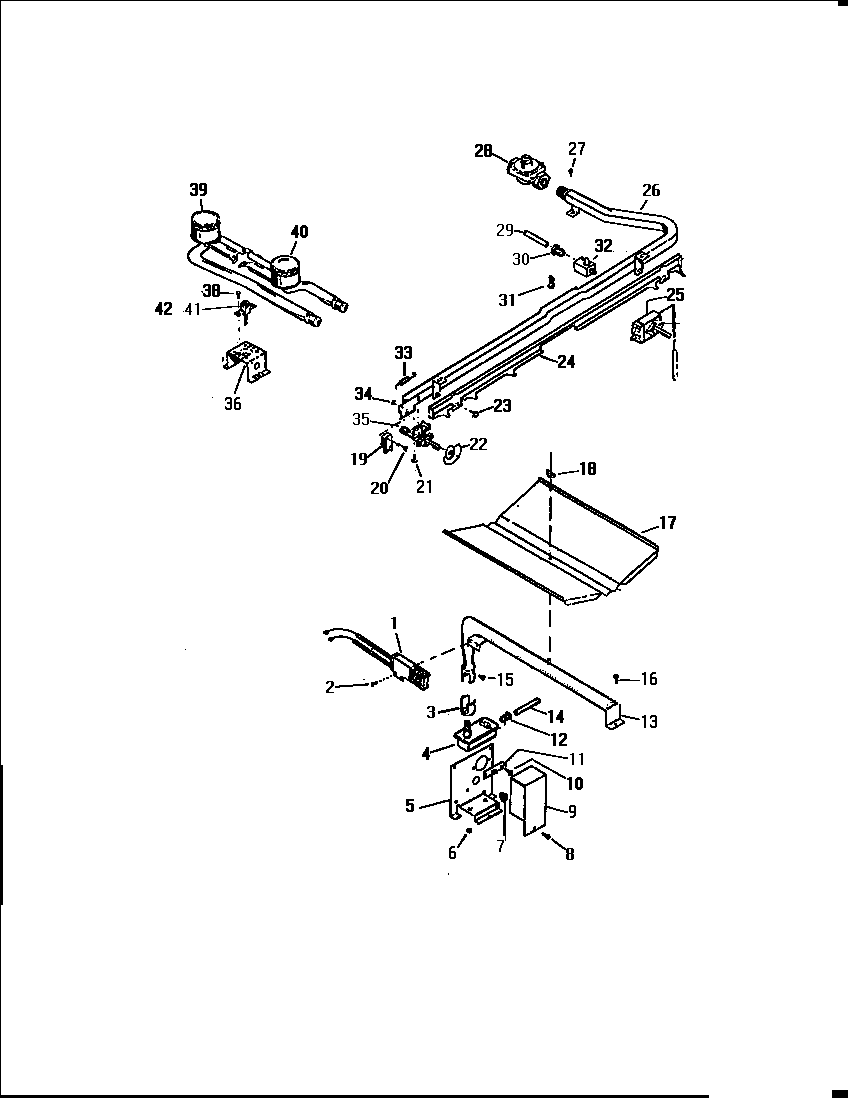

GF710HXD0 04 – BURNER ASSEMBLY

Products

Position	Product
1	5303935066 Frigidaire Oven Flat Igniter 17" Leads
2	SCREW
3	SHUTTER
4	WCI Q301871
5	SUPPORT
6	WCI AP265008
7	WCI AP074001
8	WCI AO051056
9	VALVE COVER
11	TERMINAL BLOCK
12	NUT
13	BURNER
15	SCREW
17	WCI A9010000
18	WING NUT
19	WCI Q301874
20	SCREW
21	WCI Q310002
22	WCI A22002000
23	WCI Q301839
24	WCI Q301857
25	WCI Q301858
26	WCI Q301855
28	5308007974 Frigidaire Pressure Regulator
29	WCI Q301867
30	BUT - 3/8 LOXIT
31	CLIP, CAP. TUBE
32	WCI AP386174
33	WCI Q301869
34	NUT
35	WCI Q301873
36	WCI Q301866
38	WCI AP051056
39	WCI Q301865
40	WCI Q301961
41	WCI Q301862
42	WCI Q301864
