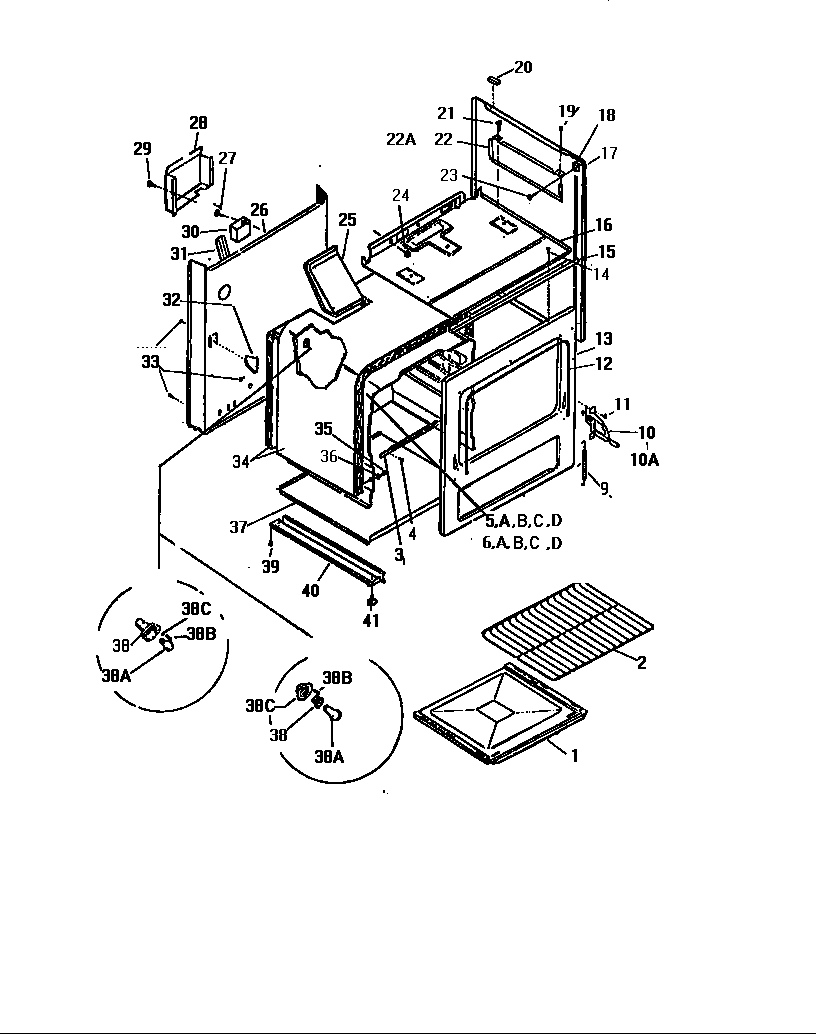

GF710HXF2 05 – BODY

Products

Position	Product
1	WCI Q301977
2	WCI AP301046
3	SUPPORT, BTM
5	WCI Q301971
5A	WCI Q301972
5D	WCI Q310085
5B	WCI Q301973
6A	WCI Q301980
6	WCI Q301979
6B	WCI Q301981
6D	WCI Q310062
9	SPRING
10A	318348801 Frigidaire Oven Left Side Door Hinge
10	WCI A96068000
12	WCI AP326052
13	WCI Q301967
15	WCI A74076000
16	WCI Q301968
17	BOTTOM PANEL, LH & RH (COFFEE)
18	WCI Q310084
19	WCI AP172002
20	WCI Q301831
22A	HEAT SHIELD, LH (NON-ILLUSTRATED)
22	HEAT SHIELD-RH
24	WCI AP074001
25	WCI A92049000
26	WCI A5087000
28	COVER, MODULE
30	WCI Q301950
31	WCI Q310003
32	WCI A74060000
33	WCI A051056
34	WCI Q134234
35	WCI AP051045
36	WCI AP391021
37	PANEL, BOTTOM
38A	WCI Q63749
38C	WCI Q310063
38	WCI Q310061
38B	5304500008 Frigidaire Oven Screw
39	WCI AP051056
40	BASE RAIL
41	WCI AP059009
