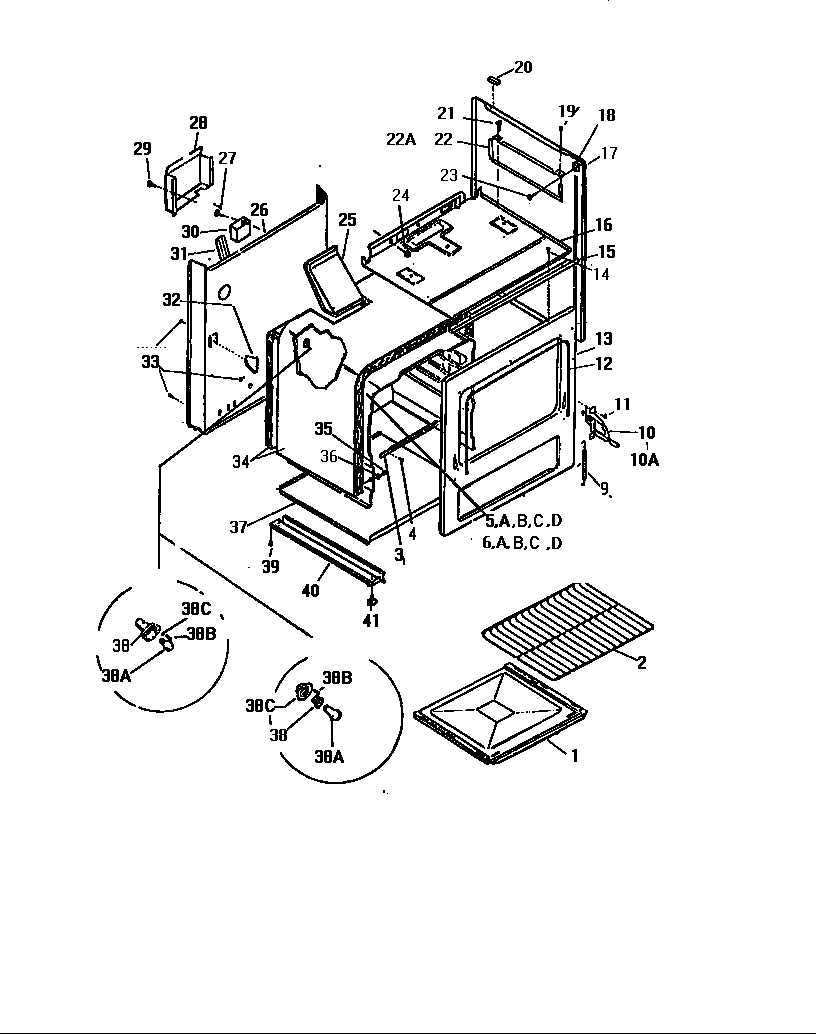

| 1 | WCI Q301977 |
| 2 | WCI AP301046 |
| 3 | SUPPORT, BTM |
| 5D | WCI Q310085 |
| 5A | WCI Q301972 |
| 5B | WCI Q301973 |
| 5 | WCI Q301971 |
| 6A | WCI Q301980 |
| 6 | WCI Q301979 |
| 6D | WCI Q310062 |
| 6B | WCI Q301981 |
| 9 | SPRING |
| 10A | 318348801 Frigidaire Oven Left Side Door Hinge |
| 10 | WCI A96068000 |
| 12 | WCI AP326052 |
| 13 | WCI Q301967 |
| 15 | WCI A74076000 |
| 16 | WCI Q301968 |
| 17 | BODY PANEL, FR AV |
| 18 | WCI Q310084 |
| 19 | WCI AP172002 |
| 20 | WCI Q301831 |
| 22 | HEAT SHIELD-RH |
| 22A | HEAT SHIELD, LH (NON-ILLUSTRATED) |
| 24 | WCI AP074001 |
| 25 | WCI A92049000 |
| 26 | WCI A5087000 |
| 28 | COVER, MODULE |
| 30 | WCI Q301950 |
| 31 | WCI Q310003 |
| 32 | WCI A74060000 |
| 33 | WCI A051056 |
| 34 | WCI Q134234 |
| 35 | WCI AP051045 |
| 36 | WCI AP391021 |
| 37 | PANEL, BOTTOM |
| 38B | 5304500008 Frigidaire Oven Screw |
| 38A | WCI Q63749 |
| 38 | WCI Q310061 |
| 38C | WCI Q310063 |
| 39 | WCI AP051056 |
| 40 | BASE RAIL |
| 41 | WCI AP059009 |
