GF710HXW1 08 – BROILER DRAWER – Aparts

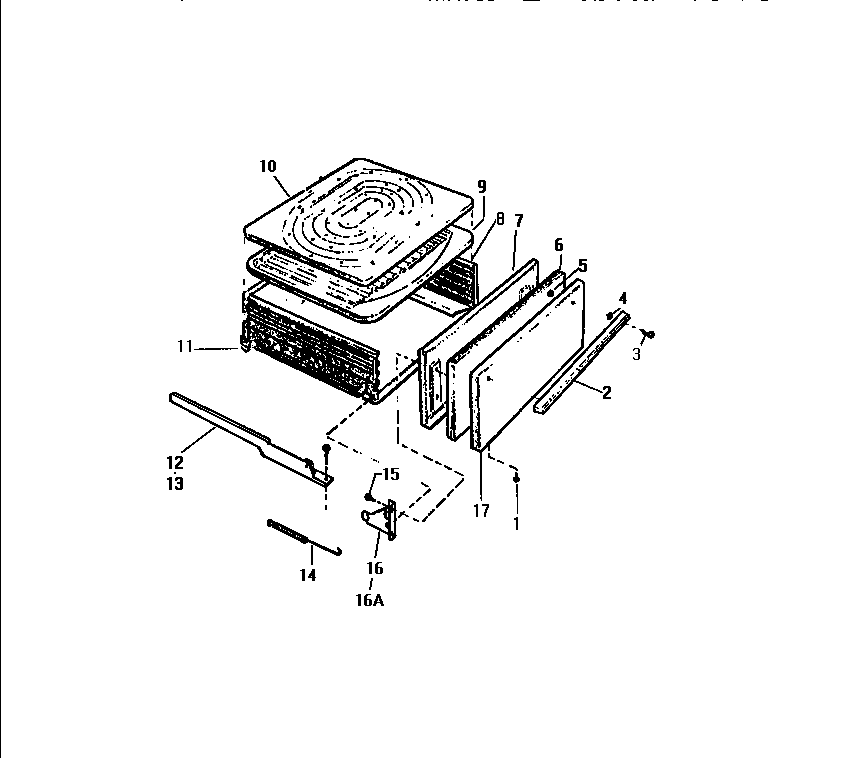

GF710HXW1 08 – BROILER DRAWER

Products

Position	Product
2	WCI Q301884
3	5303292012 Frigidaire Oven Screw
4	WCI Q61664
5	WCI AP265008
6	WCI Q138829
7	WCI Q301882
8	WCI Q301881
9	WCI A53002000
10	WCI A43001000
11	WCI AP031004
12	WCI A96070000
13	WCI A96069000
14	SPRING
15	WCI AP051056
16A	HINGE-RH
16	HINGE-LH
17	OUTER PANEL DRAWER, WHITE
