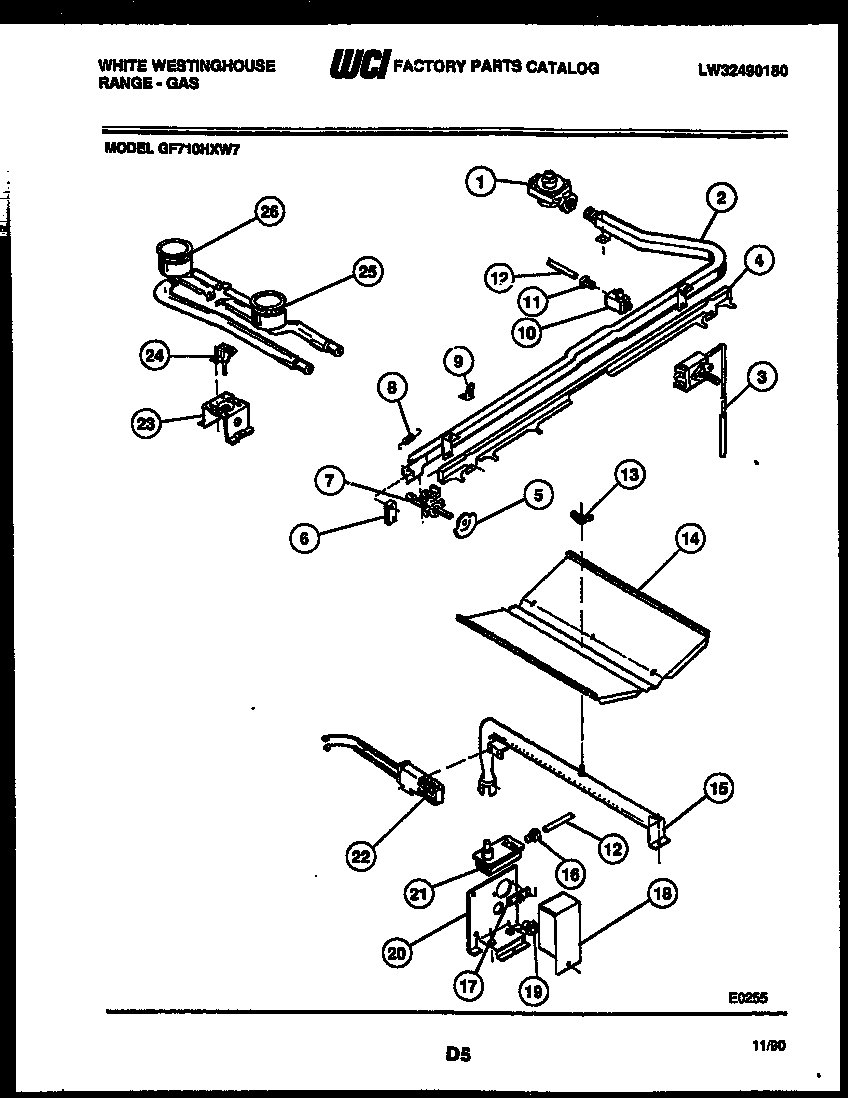

GF710HXW7 04 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*319473016993 Frigidaire Oven Retainer
15308007974 Frigidaire Pressure Regulator
2MANIFOLD
3WCI 5308013926
4SLIDE BAR
5CAM-VALVE
6WCI 5303131094
7WCI 5303131057
8SPRING – SLIDE BAR
9WCI 5300009126
10WCI 5303131099
11NUT-LOXIT (3/8)
12TUBE-OVEN FEED
13NUT – WING
14BAFFLE-OVEN BURNER
15WCI 5303202752
16LOCK NUT
17TERMINAL BLOCK
18COVER – OVEN SAFETY VALVE
19WCI 08008051
20SUPPORT-OVEN SAFETY VALVE
21WCI 5308009419
23WCI 3203964
24IGNITER-TOP BURNER 36“
255303935066 Frigidaire Oven Flat Igniter 17" Leads
26Burner,top ,rear
