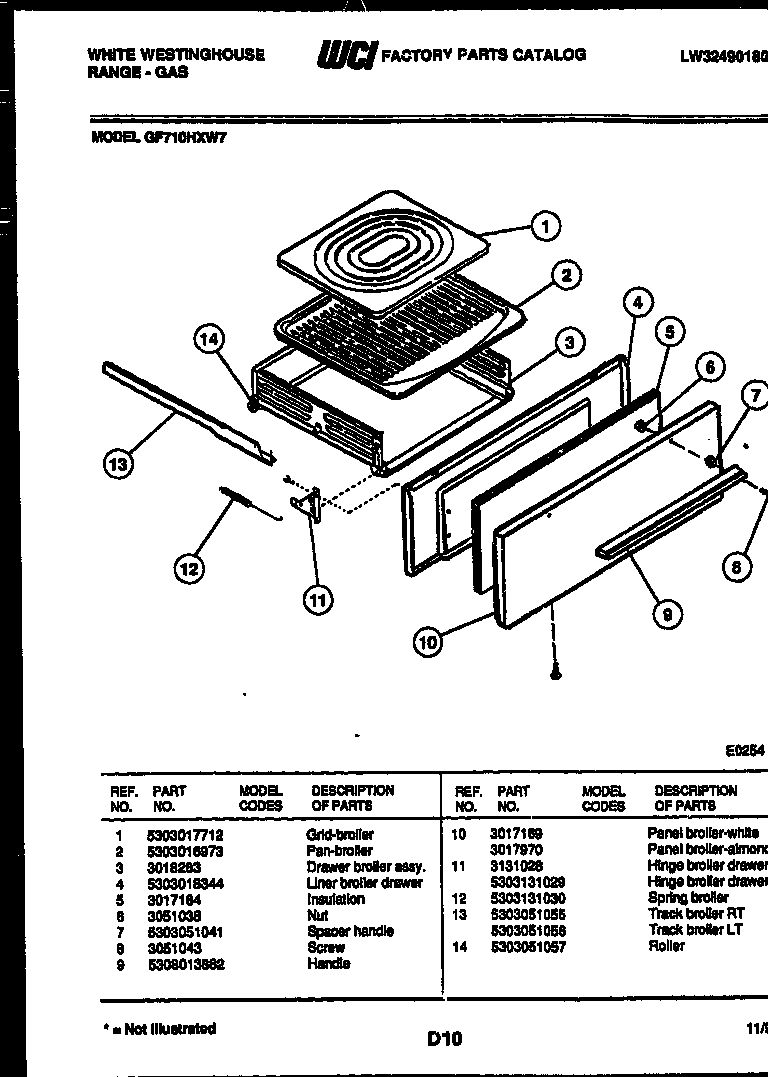

GF710HXW7 07 – BROILER DRAWER PARTS

GF710HXW7 07 – BROILER DRAWER PARTS

Written by

in

GF710HXW7 07 – BROILER DRAWER PARTS

Products

PositionProduct
1WCI 5303017712
2WCI 5303016973
35304504568 Frigidaire Drawer Assembly
4WCI 5303018344
5WCI 3017184
65303013272 Frigidaire Oven Nut
7SPACER HANDLE
85303292012 Frigidaire Oven Screw
9WCI 5308013882
10PANEL – BLACK
11AHINGE – LH
11HINGE – RH
12SPRING
13TRACK ASSY-RH
13ATRACK ASSY-LH
14ROLLER
