GF716HXD2 06 – DOOR – Aparts

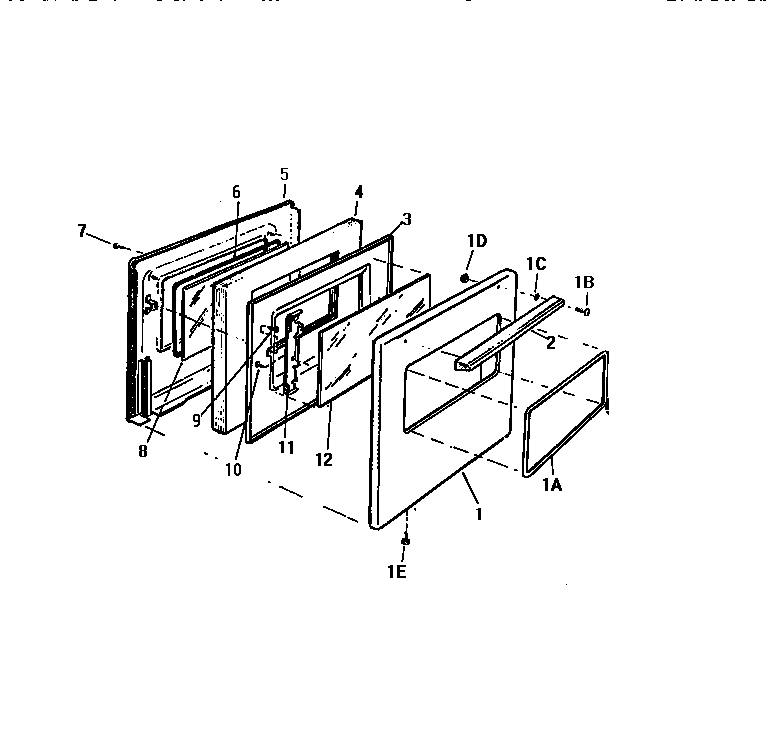

GF716HXD2 06 – DOOR

Products

Position	Product
1B	5303292012 Frigidaire Oven Screw
1	WCI Q301995
1A	WCI Q301939
1C	WCI Q61664
1D	WCI AP265008
2	WCI Q301884
3	SHIELD
4	INSULATION
5	WCI Q301930
6	SEAL
7	WCI AP051056
8	WCI AP161230
9	BOLT
10	WCI AP051051
11	CLAMP
12	WCI AP161227
