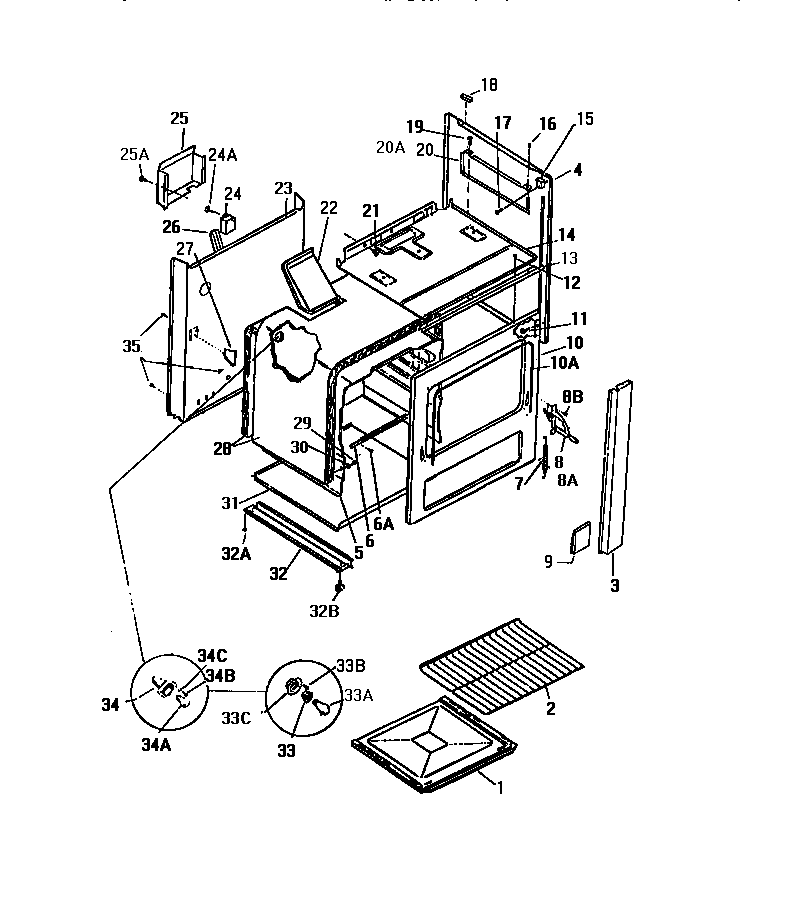

GF716HXH0 05 – BODY, SIDE PANELS

Products

Position	Product
1	WCI Q301977
2	WCI AP301046
3	WCI A54143003
4	BOTTOM PANEL, LH & RH (WHEAT)
5B	WCI Q301973
5A	WCI Q301972
5	WCI Q301971
5C	WCI Q301978
6	SUPPORT, BTM
7	SPRING
8B	5304500008 Frigidaire Oven Screw
8	WCI A96068000
8A	318348801 Frigidaire Oven Left Side Door Hinge
9	SUPPORT
10A	WCI AP326052
10	WCI Q301967
13	WCI A74065000
14	WCI Q301976
15	WCI Q310084
16	WCI AP172002
18	WCI Q301831
20	HEAT SHIELD-RH
20A	HEAT SHIELD, LH (NON-ILLUSTRATED)
21	WCI AP074001
22	WCI A92049000
23	WCI A5088000
24	WCI Q301975
25	WCI A32138000
26	WCI Q310003
27	WCI A74060000
28	WCI Q134234
29	WCI AP051045
31	PANEL, BOTTOM
32A	WCI AP051056
32B	WCI AP059009
32	BASE RAIL
34	WCI K1312472
34C	WCI AP391021
34A	WCI Q63749
34B	WCI AP325009
