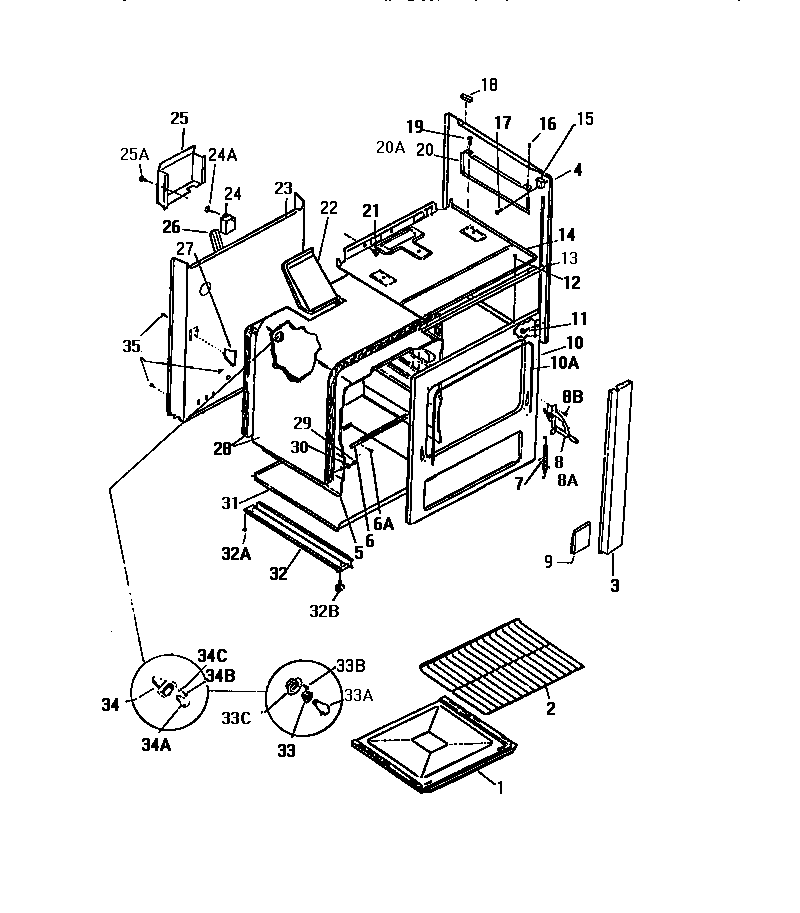

GF716HXH1 05 – BODY, SIDE PANELS

Products

Position	Product
1	WCI Q301977
2	WCI AP301046
3	WCI A54143003
4	BOTTOM PANEL, LH & RH (WHEAT)
5B	WCI Q301973
5A	WCI Q301972
5	WCI Q301971
5C	WCI Q310085
6	SUPPORT, BTM
7	SPRING
8	WCI A96068000
8A	318348801 Frigidaire Oven Left Side Door Hinge
9	SUPPORT
10A	WCI AP326052
10	WCI Q301967
13	WCI A74065000
14	WCI Q301976
15	WCI Q310084
16	WCI AP172002
18	WCI Q301831
20A	HEAT SHIELD, LH (NON-ILLUSTRATED)
20	HEAT SHIELD-RH
21	WCI AP074001
22	WCI A92049000
23	WCI A5088000
24	WCI Q301975
25	WCI A32138000
26	WCI Q310003
27	WCI A74060000
28	WCI Q134234
29	WCI AP051045
30	WCI AP391021
31	PANEL, BOTTOM
32B	WCI AP059009
32A	WCI AP051056
32	BASE RAIL
33A	WCI Q63749
33	WCI Q310061
33C	WCI Q310063
33B	5304500008 Frigidaire Oven Screw
