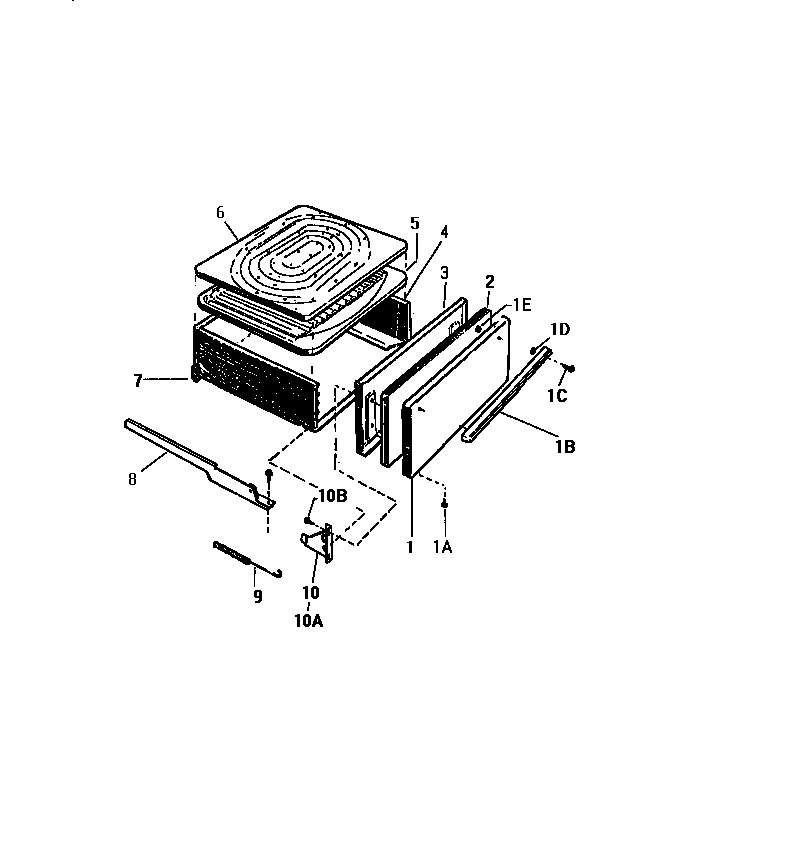

GF716HXW0 07 – BROILER DRAWER

Products

Position	Product
1C	5303292012 Frigidaire Oven Screw
1D	WCI Q61664
1B	WCI Q301884
1	OUTER PANEL DRAWER, WHITE
1E	WCI AP265008
2	WCI Q138829
3	WCI Q301882
4	WCI Q301881
5	WCI A53002000
6	WCI A43001000
7	WCI AP031004
8	WCI A96070000
8A	WCI A96069000
9	SPRING
10A	HINGE-RH
10	HINGE-LH
10B	WCI AP051056
