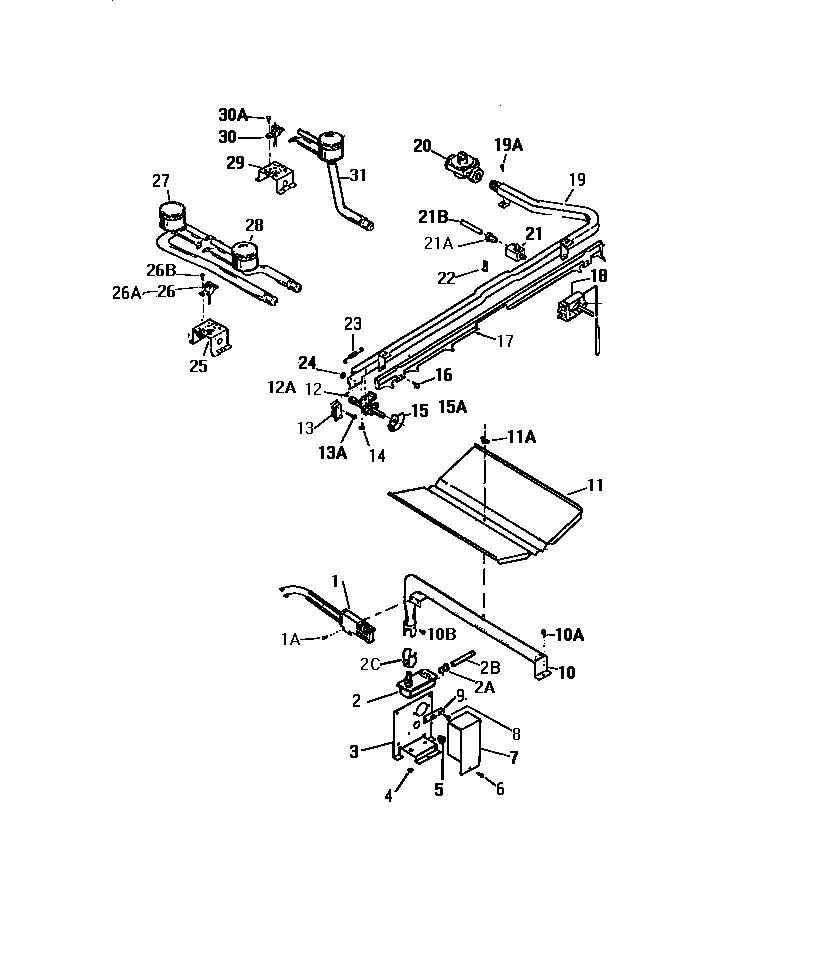

GF716HXW2 04 – BURNER ASSEMBLY

Products

Position	Product
1	5303935066 Frigidaire Oven Flat Igniter 17" Leads
1A	SCREW
2	WCI Q301871
2C	SHUTTER
2A	NUT
3	SUPPORT
4	WCI AP265008
5	WCI AP074001
7	VALVE COVER
9	TERMINAL BLOCK
10	BURNER
10B	SCREW
11A	WING NUT
11	WCI A9010000
12	WCI Q301873
12A	WCI Q301870
13A	SCREW
13	WCI Q301874
14	WCI Q310002
15	WCI A22002000
15A	WCI Q301875
16	WCI Q301839
17	WCI Q301856
18	WCI Q301858
19	WCI Q301852
20	5308007974 Frigidaire Pressure Regulator
21	VALVE
21B	WCI Q301867
21A	BUT - 3/8 LOXIT
22	CLIP, CAP. TUBE
23	WCI Q301869
24	NUT
25	WCI Q301866
26	WCI Q301863
26A	WCI Q301864
27	WCI Q301865
28	WCI Q301861
29	WCI Q310025
30A	WCI AP051056
30	WCI Q301862
