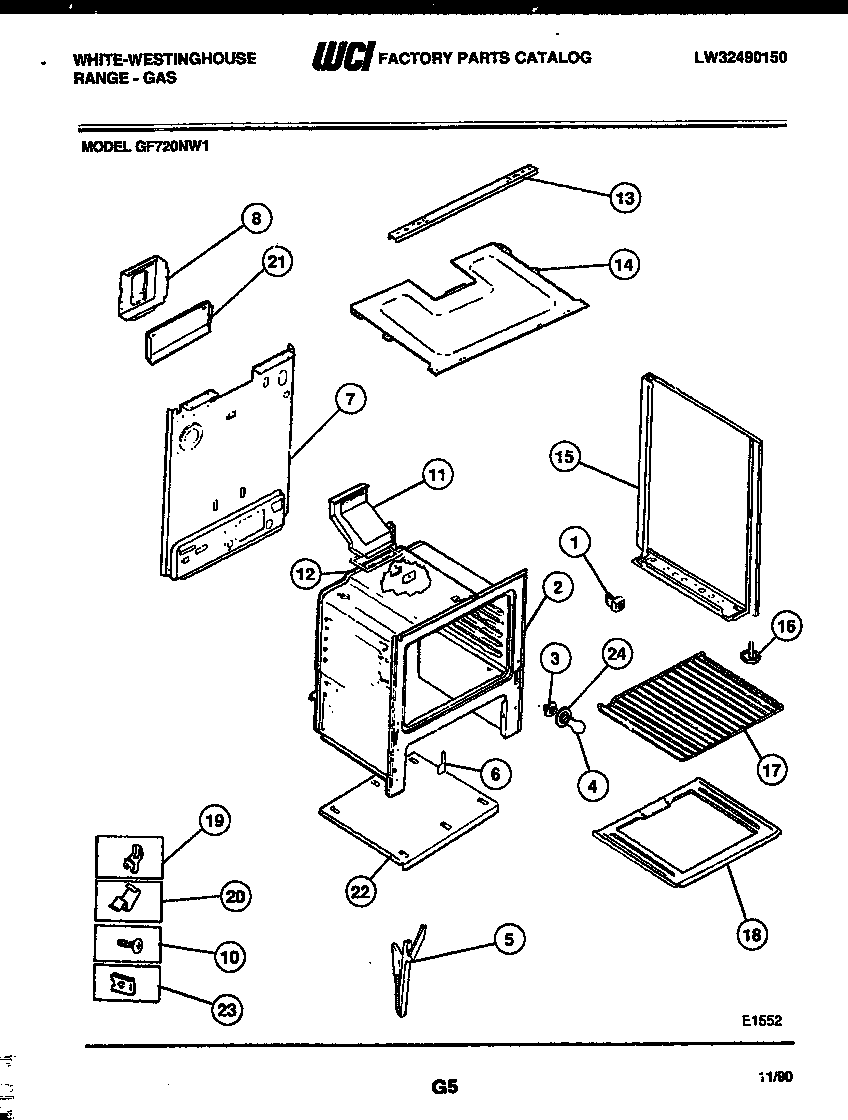

GF720NW1 07 – BODY PARTS

Products

Position	Product
*38354	SHIELD-TOP (NON-ILLUSTRATED)
*38354	DIAGRAM, WIRING (NOT FOR PURCHASE)
*38354	ANTI-TIP KIT (NOT ILLUSTRATED)
*38354	WCI 3131348
1	SPACER-BODYSIDE, (8)
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	CHAN-DOOR HINGE (2)
6	WCI 3131570
7	WCI 3203082
8	WCI 3131660
10	316282700 Frigidaire Oven Screw
11	WCI 3131904
12	316542102 Frigidaire Flue Gasket
13	CHANNEL-BURNER BOX
14	BURNER BOX BOTTOM
15A	PNL-BODYSIDE LH-WHITE
15	PNL-BODYSIDE RH-WHITE
16	SCREW-LEVELING
17B	WCI 3131252
17A	5304515659 Frigidaire Oven Power Cord
17	316067902 Frigidaire Oven Rack
18B	INSUL – OVEN BACK (NON-ILLUSTRATED)
18A	INSULATION, OVEN WRAPPER
18	BTTM-OVEN
19A	WCI 08067961
19	5303284616 Frigidaire Range Bulb Clip Thermostat
20	316539800 Frigidaire Oven Retainer
21	SHIELD-FLUE, (NON-ILLUSTRATED)
21A	3131903 Frigidaire Door/Drawer Bumper
21B	316064600 Frigidaire Oven Support
22B	COVER-POWER CORD, (NON-ILLUSTRATED)
22	WCI 3131180
22A	COVER-IGNITOR
23A	COVER-OVEN FRONT
23	3203010 Frigidaire Clip
24	WCI 3051511
