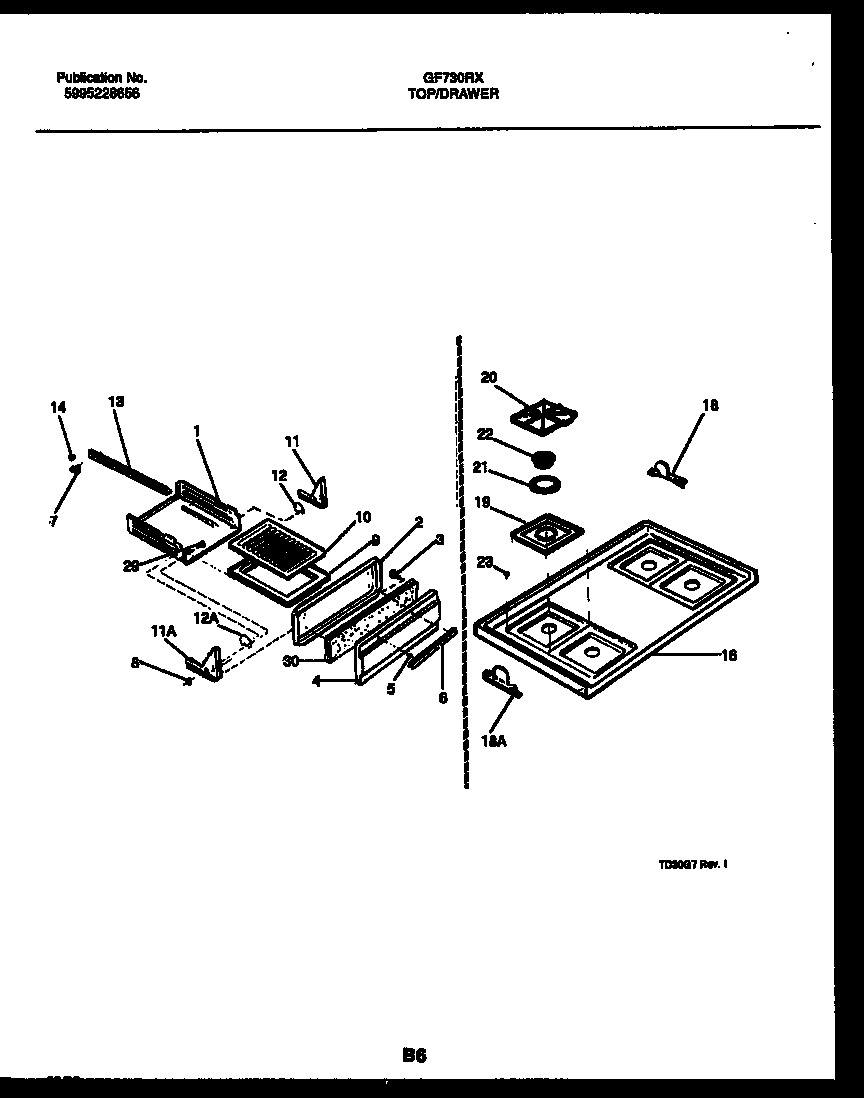

GF730RXW1 05 – COOKTOP AND BROILER DRAWER PARTS

GF730RXW1 05 – COOKTOP AND BROILER DRAWER PARTS

Written by

in

GF730RXW1 05 – COOKTOP AND BROILER DRAWER PARTS

Products

PositionProduct
*68911WCI 5303281584
1DRAWER-BROILER
2WCI 3202803
3SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4PNL-DRAWER (WHTE)
5FSTNR, SPACER (2)
6HANDLE
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11WCI 3018860
11AWCI 3200673
12AWCI 3018618`
12SPRING-BROILER, RH
13WCI 3131153
14WCI 3206216
16WCI 316010401
16AGUSSET-MTG (RH) (NON-ILLUSTRATED)
16BGUSSET-MTG (LH) (NON-ILLUSTRATED)
18ABRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
19WCI 316011400
20WCI 5303269632
21WCI 316035101
22316010901 Frigidaire Burner Cap P1
23316069301 Frigidaire Oven Burner Mounting Primary Screw
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
