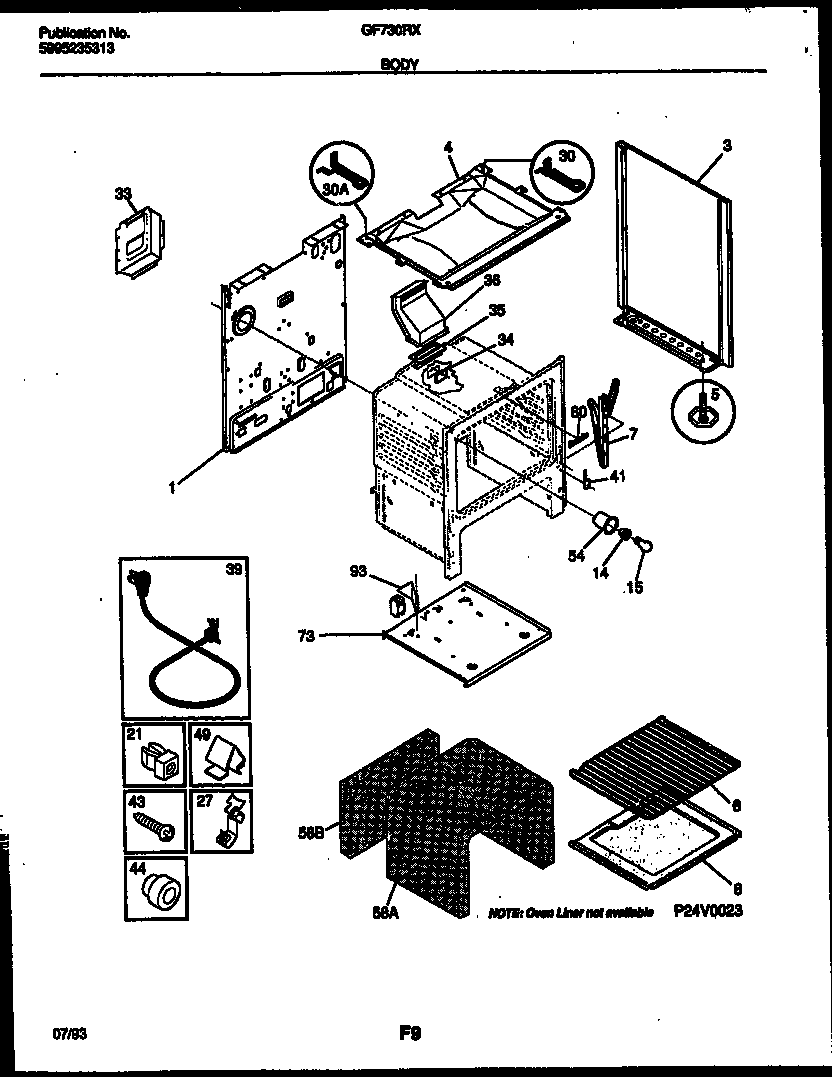

GF730RXW2 04 – BODY PARTS

Products

Position	Product
*76682	WCI 5303280614
1	WCI 3203082
3A	PNL-B/S-LH-WHITE
3	PNL-B/S-RH-WHITE
4	WCI 5303269487
5A	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5B	ANTI-TIP KIT (NOT ILLUSTRATED)
5	SCREW-LEVELING
6	316067902 Frigidaire Oven Rack
7	Hinge,oven door ,(2)
8A	316064600 Frigidaire Oven Support
8	BTTM-OVEN
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
21	SPACER-BODYSIDE, (8)
27	5303284616 Frigidaire Range Bulb Clip Thermostat
33	WCI 316055601
34	COVER-IGNITOR
35	316542102 Frigidaire Flue Gasket
36	WCI 3131904
39	5304515659 Frigidaire Oven Power Cord
41	WCI 3131570
43	316282700 Frigidaire Oven Screw
44	3131903 Frigidaire Door/Drawer Bumper
49	3205821 Frigidaire Clip
54	WCI 5303271606
58A	INSULATION, OVEN WRAPPER
58B	INSUL - OVEN BACK (NON-ILLUSTRATED)
60	COVER-OVEN FRONT
73	BASE-BROIL
93	WCI 316055501
