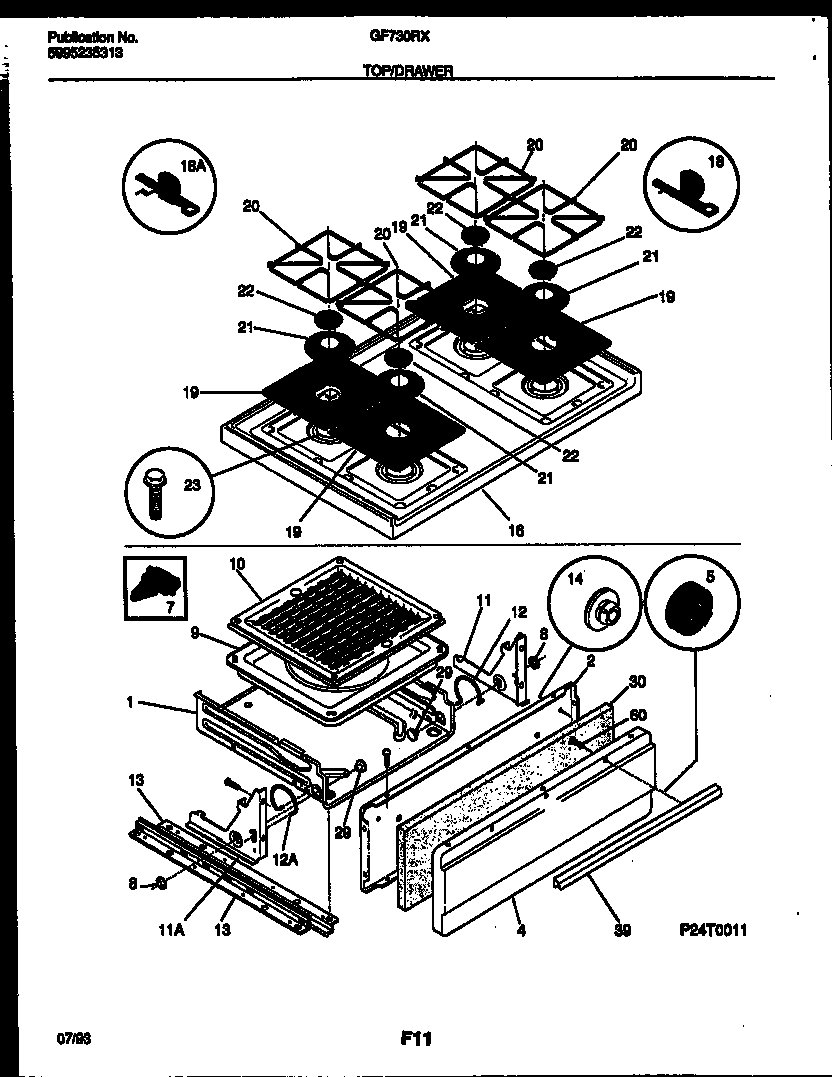

GF730RXW2 05 – COOKTOP AND BROILER DRAWER PARTS

Products

PositionProduct
1DRAWER-BROILER
2WCI 3202803
4PNL-DRAWER (WHTE)
4AWCI 08087785
5FSTNR, SPACER (2)
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11AWCI 3200673
11WCI 3018860
12SPRING-BROILER, RH
12AWCI 3018618`
13WCI 3131153
14WCI 3206216
16WCI 316010401
16BGUSSET-MTG (LH) (NON-ILLUSTRATED)
16AGUSSET-MTG (RH) (NON-ILLUSTRATED)
18BRACKET-HINGE,MAIN TOP RH
18ABRACKET-HINGE,MAIN TOP LH
18B131243700 Frigidaire Screw
19WCI 316011400
20WCI 5303269632
21WCI 316035101
22316010901 Frigidaire Burner Cap P1
23316069301 Frigidaire Oven Burner Mounting Primary Screw
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
39HANDLE
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
