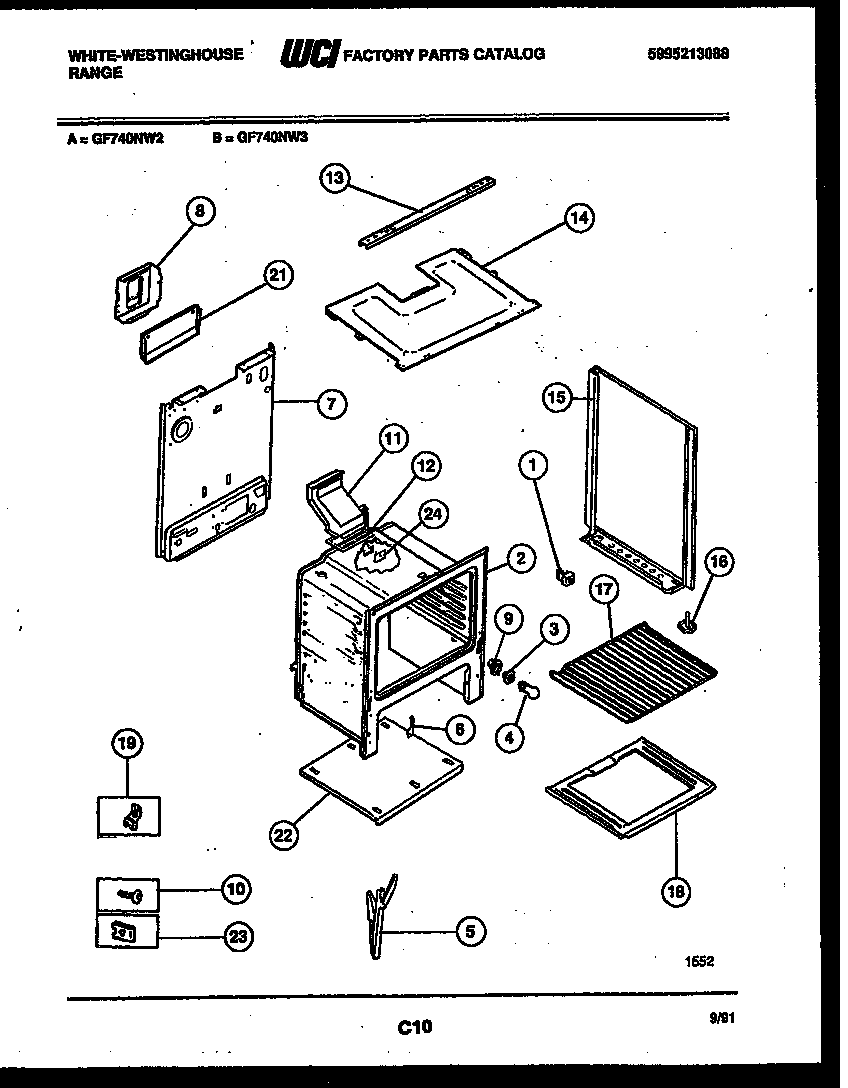

GF740NW3 07 – BODY PARTS

Products

PositionProduct
*52671WCI 1910080225
*52671WCI 08010570
*52671SHIELD-TOP (NON-ILLUSTRATED)
*52670SHIELD-FLUE, (NON-ILLUSTRATED)
1SPACER-BODYSIDE, (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5WCI 316007002
6WCI 3131570
6A5304515659 Frigidaire Oven Power Cord
7WCI 3203082
8WCI 3131660
9WCI 5303271606
10316282700 Frigidaire Oven Screw
11WCI 3131904
12316542102 Frigidaire Flue Gasket
13CHANNEL-BURNER BOX
14BURNER BOX BOTTOM
15APNL-B/S-LH-WHITE
15PNL-B/S-RH-WHITE
16SCREW-LEVELING
17316067902 Frigidaire Oven Rack
18BINSUL – OVEN BACK (NON-ILLUSTRATED)
18BTTM-OVEN
18AINSULATION, OVEN WRAPPER
19BWCI 08067961
19AWCI 08010556
21A3131903 Frigidaire Door/Drawer Bumper
21B316064600 Frigidaire Oven Support
21WCI 3131348
22AANTI-TIP KIT (NOT ILLUSTRATED)
22BCOVER-POWER CORD, (NON-ILLUSTRATED)
22WCI 5303270160
233203010 Frigidaire Clip
23ACOVER-OVEN FRONT
24COVER-IGNITOR
