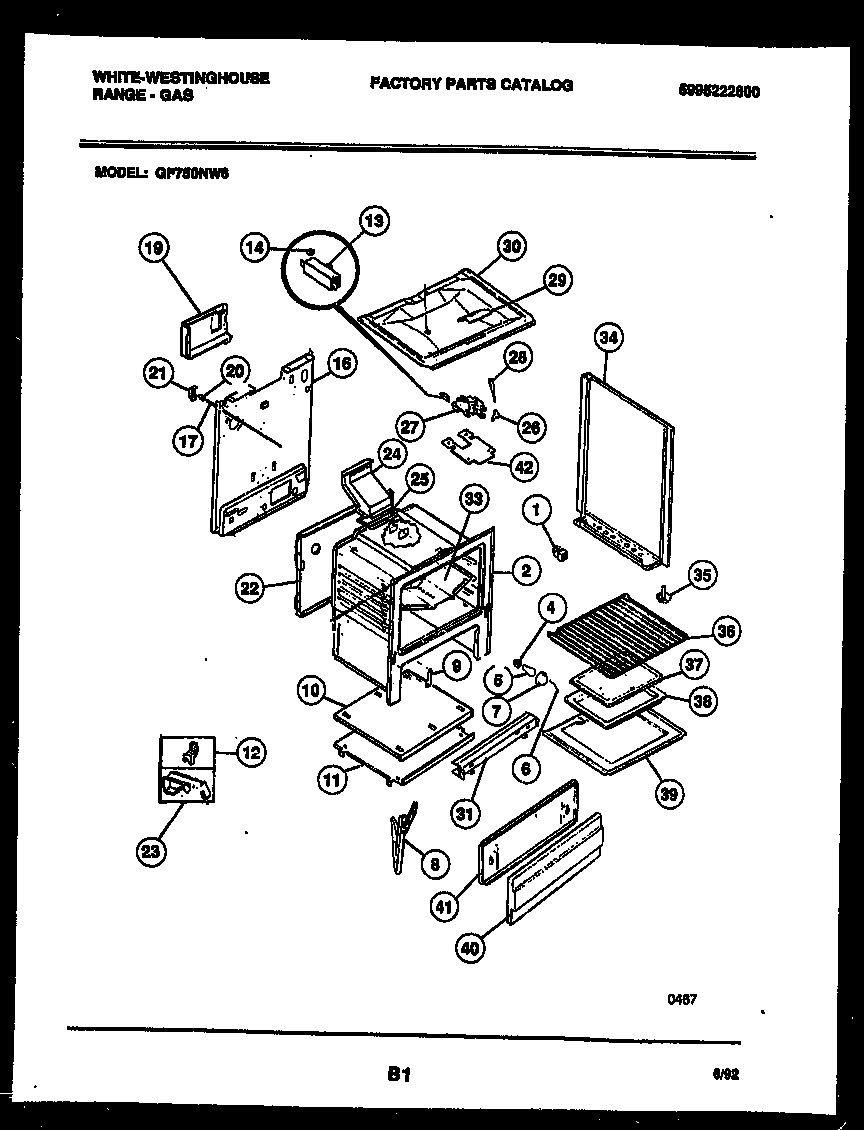

GF750NW6 05 – BODY PARTS

GF750NW6 05 – BODY PARTS

Written by

in

GF750NW6 05 – BODY PARTS

Products

PositionProduct
*65054SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*65054ANTI-TIP KIT (NOT ILLUSTRATED)
*65054INSULATION, OVEN TOP
*65054WCI 3018702
*65054SHIELD-OVN TOP
*65054WCI 19100180305
*65055WCI 08010570
*65055COVER-LIGHT/SWITCH ROD
1SPACER-BODYSIDE, (8)
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6RETAINER-GLASS
75304524341 Frigidaire Lens
8Hinge,oven door ,(2)
9WCI 3131570
10SHIELD-HEAT UPPER
11WCI 3131313
11AWCI 08067992
125303284616 Frigidaire Range Bulb Clip Thermostat
13SWITCH-LATCH
14B5304515659 Frigidaire Oven Power Cord
14FSTNR-PUSH ON
14ASTUD SPACER (2) (NON-ILLUSTRATED)
16WCI 3203082
17WCI 5303269501
19SHIELD, REAR WALL
20SWITCH-OVEN LITE DOOR
21WCI 5303131289
22WCI 316014301
23CLIP-WIRE
24WCI 3131931
25BWCI 08013188
25ASHIELD-LATCH
25316542102 Frigidaire Flue Gasket
26WCI 3203218
27WCI 5303015453
28WCI 5303131357
29WCI 08067757
30WCI 3011597
31SHIELD-FRONT
33WCI 3200836
34PNL-B/S-LH-WHITE
34APNL-B/S-RH-WHITE
35SCREW-LEVELING
36316067902 Frigidaire Oven Rack
37WCI 5303131356
38PAN-BROILER
39D08067973 Frigidaire 0 Insulation
39A316064600 Frigidaire Oven Support
39EINSULATION, OVEN WRAPPER
39CINSULATION OVEN BACK (NON-ILLUSTRATED)
39BTTM-OVEN
39AWCI 08067961
39FWCI 08068018
40PNL – DRAWER (WHITE)
41A316282700 Frigidaire Oven Screw
41SHIELD-PNL
42SHIELD-LATCH (NON-ILLUSTRATED)
