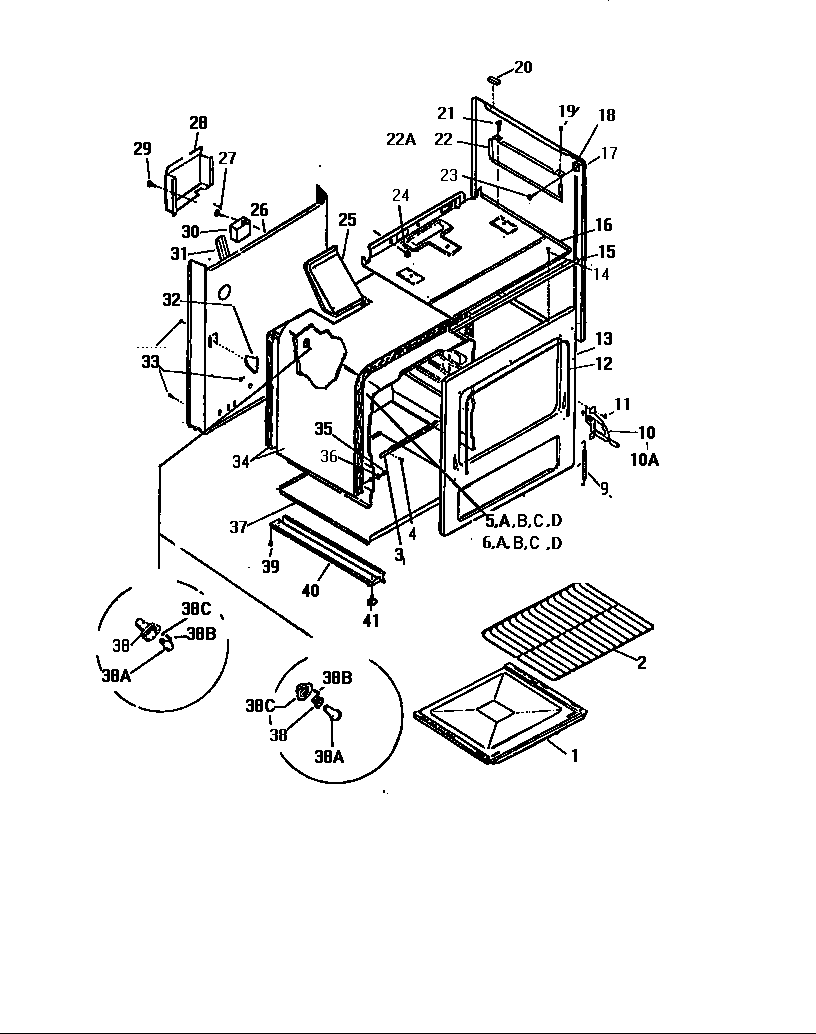

GF770HXW0 05 – BODY

Products

Position	Product
1	WCI Q301977
2	WCI AP301046
3	SUPPORT, BTM
5C	WCI Q301978
6B	WCI Q301981
6C	WCI Q301982
6A	WCI Q301980
6	WCI Q301979
9	SPRING
10	WCI A96068000
10A	318348801 Frigidaire Oven Left Side Door Hinge
11	5304500008 Frigidaire Oven Screw
12	WCI AP326052
13	WCI Q301967
15	WCI A74076000
16	WCI Q301968
17	BOTTOM PANEL, RH & LH (WHITE)
18	WCI Q310084
19	WCI AP172002
20	WCI Q301831
22A	HEAT SHIELD, LH (NON-ILLUSTRATED)
22	HEAT SHIELD-RH
24	WCI AP074001
25	WCI A92049000
26	WCI A5087000
28	COVER, MODULE
30	WCI Q301950
31	WCI Q310003
32	WCI A74060000
33	WCI A051056
34	WCI Q134234
35	WCI AP051045
36	WCI AP391021
37	PANEL, BOTTOM
38	WCI K1312472
38A	WCI Q63749
38B	WCI AP325009
38C	WASHER
39	WCI AP051056
40	BASE RAIL
41	WCI AP059009
