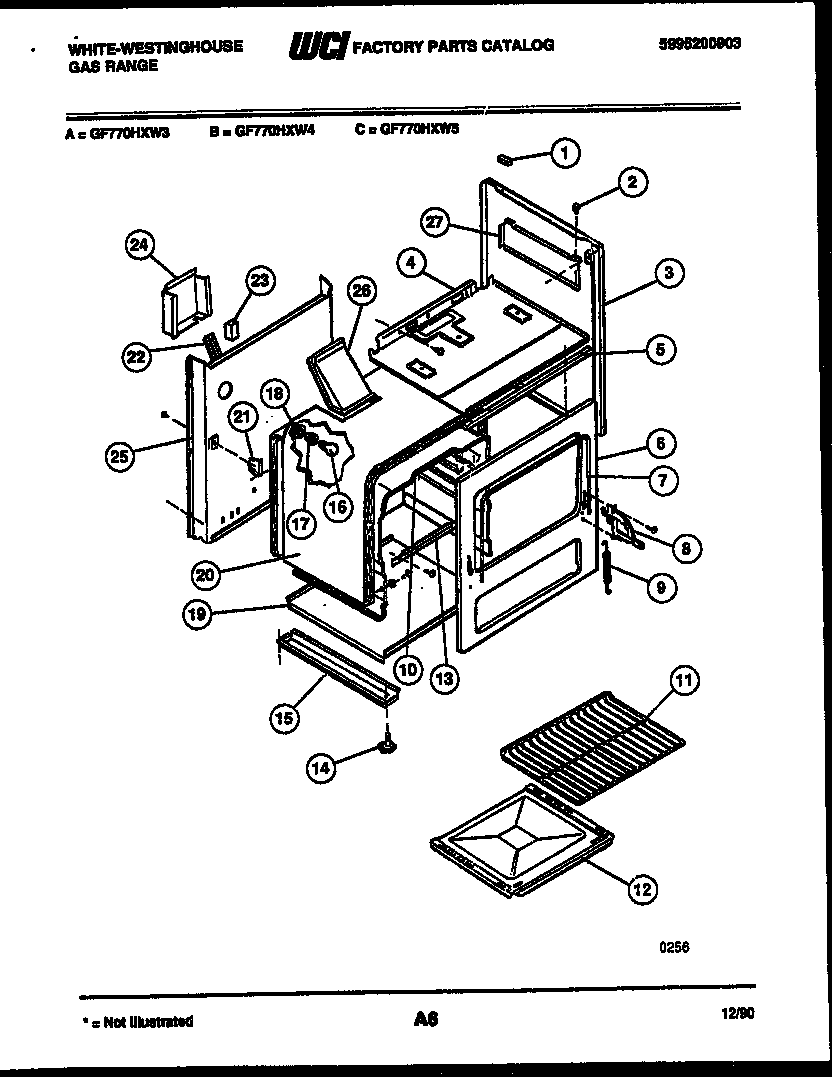

GF770HXW3 05 – BODY PARTS

Products

Position	Product
*18132	ANTI-TIP KIT
*18132	WCI 191S018F271
1	WCI 5303016129
2	GROMMET
3	BODYSIDE PANEL-WHITE (2)
4	WCI 3017174
5	SUPPORT CONTROL PNL
6	WCI 3017790
7	DOOR SEAL
8A	318348801 Frigidaire Oven Left Side Door Hinge
8	HINGE ASSY-RH
9	SPRING-OVEN DOOR (2)
10A	WCI 3018710
10B	WCI 3018713
10C	WCI 3018712
10	WCI 3018709
11	OVEN RACK (2)
12	WCI 3018282
13	SUPPORT-OVEN BOTTOM
14	LEG LEVELLER (4)
15	RAIL-BASE
16	316538904 Frigidaire Oven Lamp Light
17	316116400 Frigidaire Oven Light Socket
18	WCI 3051511
19	WCI 3011645
20	WCI 3017171
20A	WCI 3017172
21	SUPPORT-REAR OVN (2)
22	CHANNEL – MAIN WIRE
23	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
24	WCI 08013953
25	WCI 5303013340
26	WCI 3017173
27A	SHIELD-BURNER BOX LH
27	SHIELD-BURNER BOX RH
