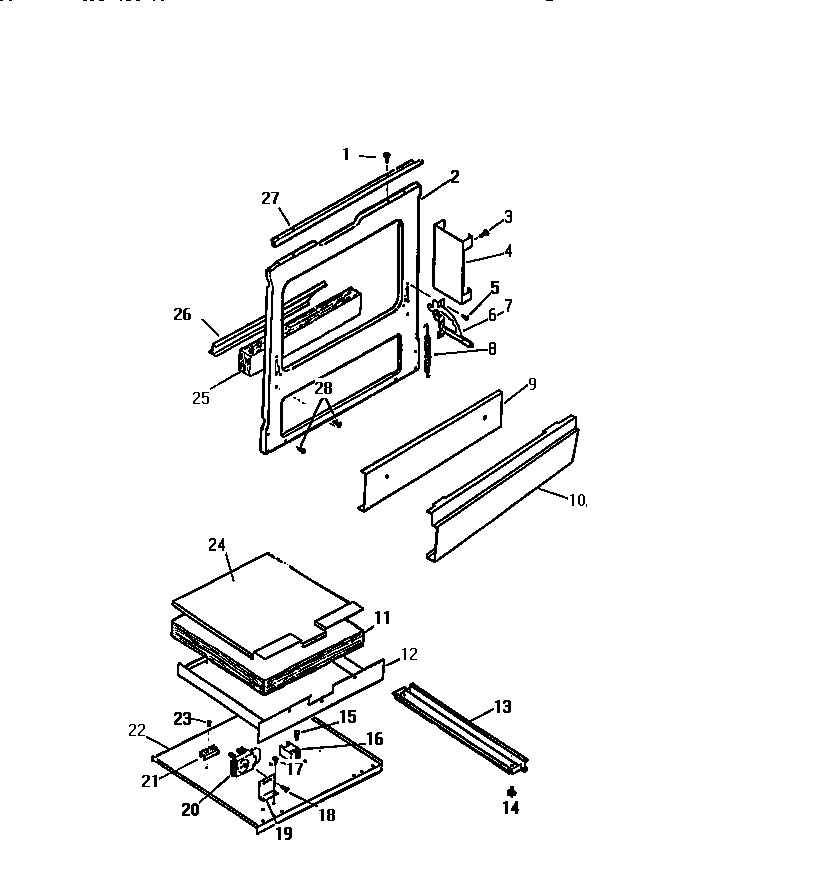

GF780HXD1 08 – FRAME, SERVICE PANEL, BASE

Products

Position	Product
2	FRAME
4	RETAINER
5	5304500008 Frigidaire Oven Screw
6	318348801 Frigidaire Oven Left Side Door Hinge
7	WCI A96098000
8	SPRING
9	WCI Q301951
10	WCI Q301956
11	INSULATION
12	WCI A11066000
14	WCI AP059009
16	WCI Q301950
17	WCI AP051056
18	WCI AP049001
19	WCI A18081000
20	TIMER, CLEAN
21	BLOCK, TERM.
22	PANEL, BOTTOM
23	SCREW
24	TOP, SERVICE DRAWER
25	RETAINER
26	RETAINER
27	WCI A74064000
28	WCI Q301839
