GF780HXW0 09 – BODY, SIDE PANELS – Aparts

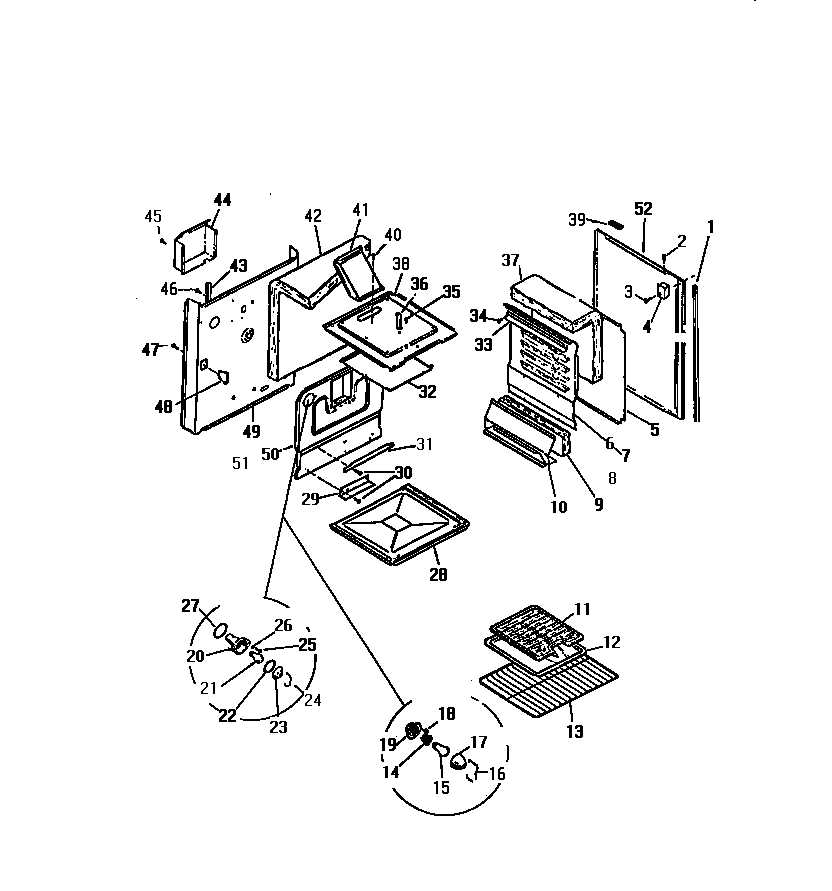

GF780HXW0 09 – BODY, SIDE PANELS

Products

Position	Product
1	WCI Q310079
2	WCI AP172002
4	WCI Q310084
5	SHIELD
6	LINING, SIDE, RH
7	LINING, SIDE, LH
9	INSULATION
10	RETAINER
11	GRID
12	PAN
13	WCI AP301046
20	RECEPTACLE
21	WCI Q63749
22	WCI AP182011
23	5304524341 Frigidaire Lens
24	RETAINER
25	WCI AP325009
26	WASHER
27	GASKET
28	LINING, BOTTOM
29	BRACKET
31	SUPPORT, BTM
32	WCI A9011000
33	SHIELD
35	5304500008 Frigidaire Oven Screw
36	BRACKET
37	INSULATION
38	WCI A51136000
39	WCI Q301831
41	WCI A92049000
42	INSULATION
43	WCI Q310003
44	WCI Q310040
47	WCI AP051056
48	WCI A74060000
49	WCI A5081000
50	WCI Q310041
52	BOTTOM PANEL, RH & LH (WHITE)
