GF780HXW1 09 – BODY, SIDE PANELS

GF780HXW1 09 – BODY, SIDE PANELS

Written by

in

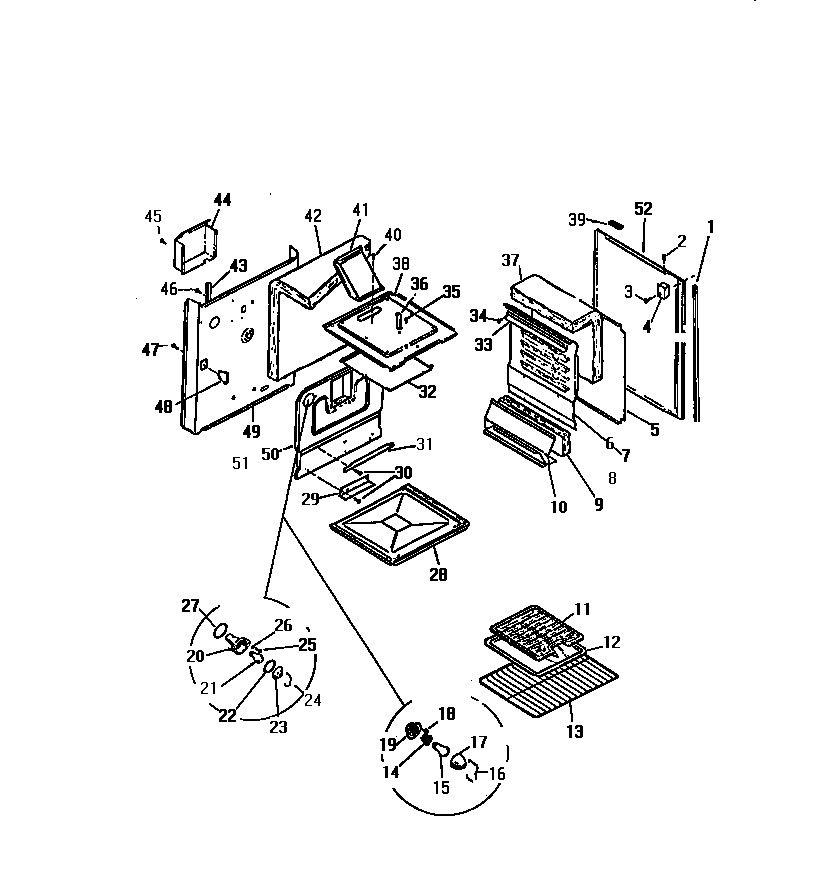

GF780HXW1 09 – BODY, SIDE PANELS

Products

Position	Product
1	WCI Q310079
2	WCI AP172002
4	WCI Q310084
5	SHIELD
6	LINING, SIDE, RH
7	LINING, SIDE, LH
9	INSULATION
10	RETAINER
11	GRID
12	PAN
13	WCI AP301046
14	WCI Q310061
15	WCI Q63749
16	RETAINING WIRE
17	5304524341 Frigidaire Lens
18	WCI AP51042
19	WCI Q310063
28	LINING, BOTTOM
29	BRACKET
31	SUPPORT, BTM
32	WCI A9011000
33	SHIELD
35	5304500008 Frigidaire Oven Screw
36	BRACKET
37	INSULATION
38	WCI A51136000
39	WCI Q301831
41	WCI A92049000
42	INSULATION
43	WCI Q310003
44	WCI Q310040
47	WCI AP051056
48	WCI A74060000
49	WCI A5081000
51	WCI Q310078
52	BOTTOM PANEL, RH & LH (WHITE)
