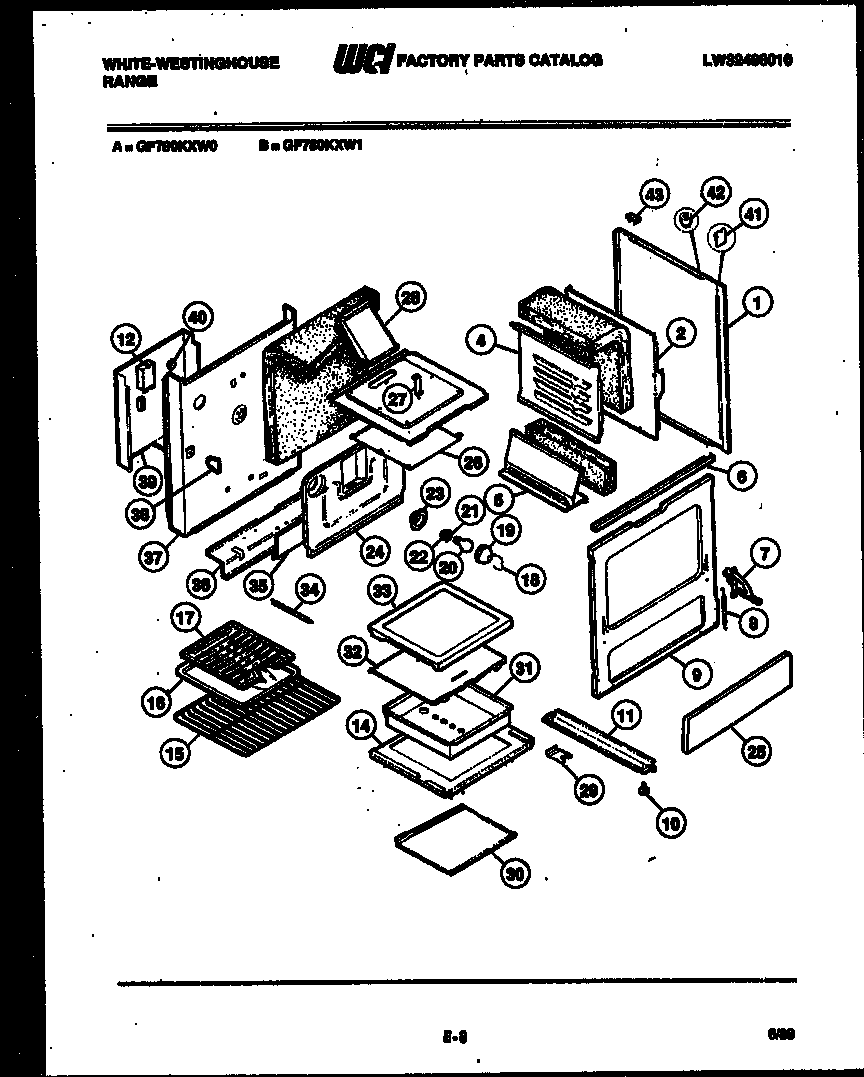

GF780KXD1 07 – BODY PARTS

Products

Position	Product
1	WCI Q000301946
2	WCI 3131794
4	OVEN LINER SIDE RH
4A	LINER-LEFT SIDE (BLUE)
5	WCI 3131820
6	WCI A074076000
7A	318348801 Frigidaire Oven Left Side Door Hinge
7	HINGE DOOR RT
8	WCI AP00339038
9	FRAME-FRONT (BLUE)
10	WCI Q000310108
11	WCI A098373000
14	LINING-OVEN BOTTOM (BLUE)
15	RACK-OVEN
16	BROILER-PAN
17B	WCI 3131840
17A	WCI 3131795
17	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
18	RETAINER-OVEN LIGHT LENS
19	5304524341 Frigidaire Lens
20	316538904 Frigidaire Oven Lamp Light
21	SOCKET HOUSING
22	316116400 Frigidaire Oven Light Socket
23	CUP – OVEN LIGHT
24	LINER-OVEN BACK (BLUE)
25	WCI Q000301952
25	WCI 3012964
26	WCI 3131802
27	WCI A018080000
28	VENT BOX ASSEMBLY
29	BRACKET-INSTALLATION (2)
30	WCI 3131819
31	WCI 3131822
33	OVEN-BOTTOM PLATE (BLUE)
34	SHIELD-CAPILLARY BULB
35	WCI 3131830
36	WCI 3131831
37	WCI 3131833
38	WCI A074060000
39	WCI 3131835
40	WCI 3131839
41	CLIP BACKSPLASH CORNER
42	WCI AP00172002
43	GROMMET MAIN TOP
