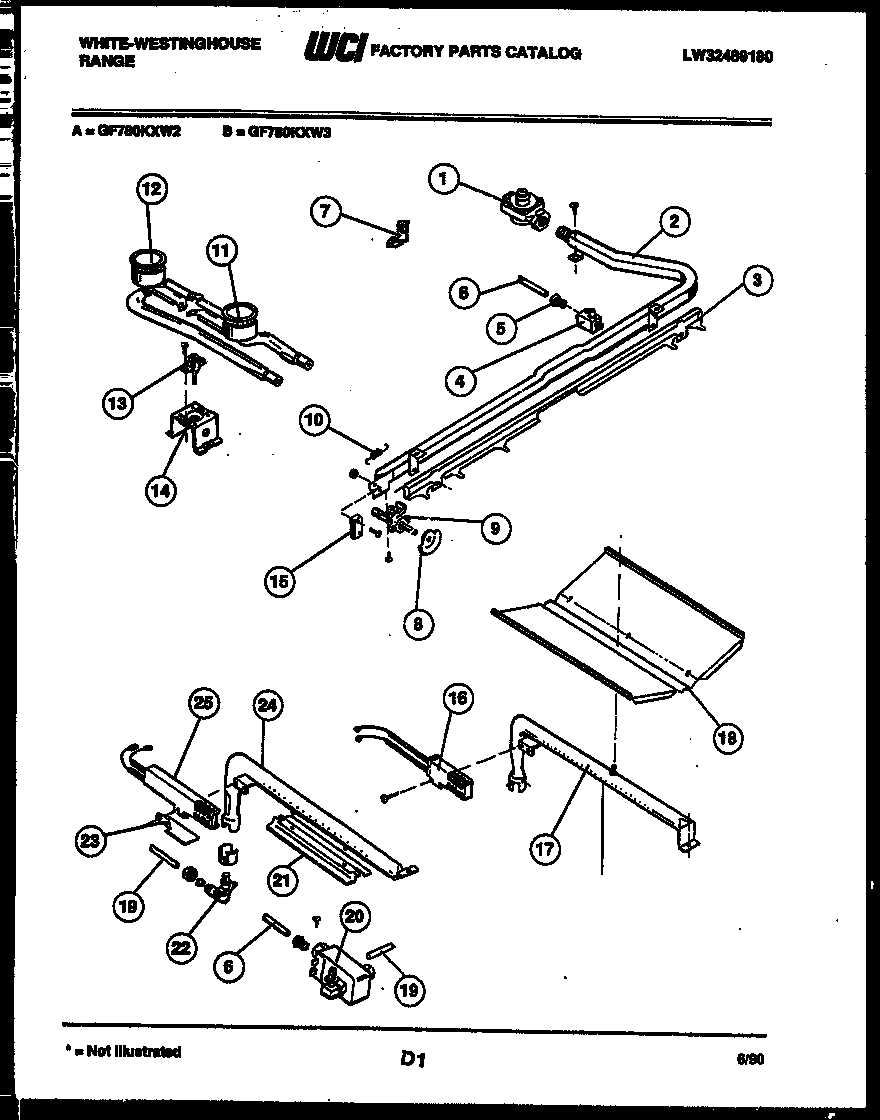

GF780KXD3 06 – BURNER, MANIFOLD AND GAS CONTROL

GF780KXD3 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

GF780KXD3 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*30998SPACER (NON-ILLUSTRATED)
15308007974 Frigidaire Pressure Regulator
2WCI 08013906
3SLIDE BAR
4WCI 3131099
5WCI 3131064
6WCI 3131863
7CLIP-CAPILLARY (NON-ILLUSTRATED)
8WCI 08008002
9WCI 3131057
10WCI 3131096
11BURNER – TOP FRONT
12BURNER – TOP REAR
13IGNITER-TOP BURNER 48“
14WCI 3202964
15MICRO – SWITCH
165303935066 Frigidaire Oven Flat Igniter 17" Leads
17WCI 3131860
18SHIELD-BAKE BURNER
19WCI 3131866
20WCI 3017415
21WCI 08011509
22WCI 08011470
23WCI 3131871
24WCI 3131873
255303935067 Frigidaire Range Oven Flat Igniter 3-1/4"
