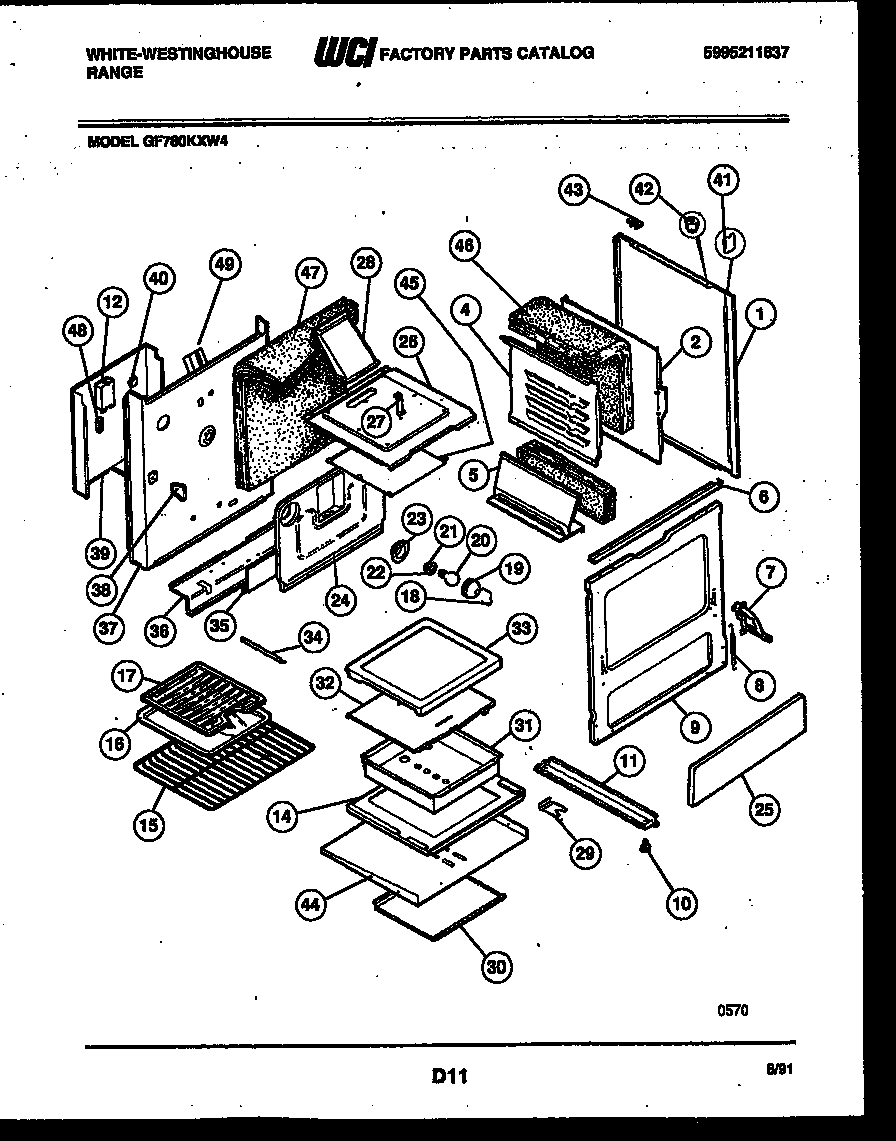

GF780KXD4 07 – BODY PARTS

Products

Position	Product
*51975	WCI 19100180251
1	WCI 08014019
2	WCI 3131794
4	LINER-RIGHT SIDE
4	WCI 3016534
5	SHIELD-BURNER BOX RH
5	SHIELD-BURNER BOX LH
6	SUPPORT CONTROL PNL
7	318348801 Frigidaire Oven Left Side Door Hinge
7	WCI 3205894
8	SPRING-OVEN DR (2)
9	WCI 3205905
11	RAIL-BASE, LH
11	Rail,base ,RH
12	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
14	WCI 12055
15	OVEN RACK (2)
16	WCI 5303016973
17	WCI 5303017712
18	RETAINER-LENS
19	5304524341 Frigidaire Lens
20	316538904 Frigidaire Oven Lamp Light
21	SOCKET HOUSING
22	316116400 Frigidaire Oven Light Socket
23	WCI 3051511
24	LINER OVEN BACK
25	WCI 3012964
26	WCI 3131802
27	WCI 3131800
28	VENT BOX ASSEMBLY
29	BRACKET-INSTALLATION (2)
30	SHIELD-DRAWER
31	WCI 08068046
32	SHIELD-BAKE BURNER
33	WCI 3016975
34	SHIELD-CAPILLARY BULB
35	SUPPORT, CONTROL VALVE
36	WCI 3131831
37	WCI 3131833
38	SUPPORT-REAR OVN (2)
39	WCI 3131835
40	WCI 3131839
41	CLIP,BODYSIDE
43	GROMMET-MAINTOP
44	WCI 3131820
45	Baffle,oven burner
46	WCI 3131795
47	WCI 3131840
48	TERMINAL BLOCK
49	CHANNEL – MAIN WIRE
