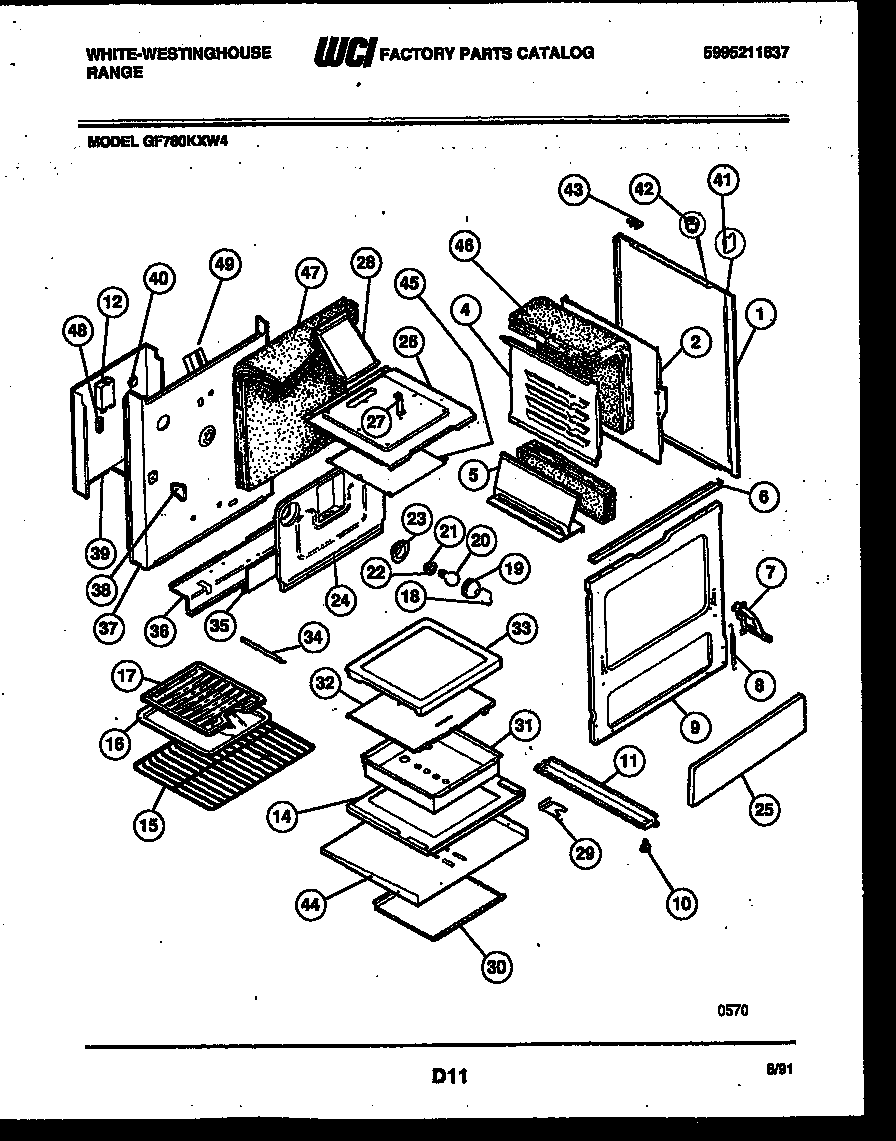

GF780KXW4 07 – BODY PARTS

Products

Position	Product
*51975	WCI 19100180251
1	PANEL-BODYSIDE (WHITE) (2)
2	WCI 3131794
4	WCI 3016534
4	LINER-RIGHT SIDE
5	SHIELD-BURNER BOX LH
5	SHIELD-BURNER BOX RH
6	SUPPORT CONTROL PNL
7	WCI 3205894
7	318348801 Frigidaire Oven Left Side Door Hinge
8	SPRING-OVEN DR (2)
9	WCI 3205905
11	RAIL-BASE, LH
11	Rail,base ,RH
12	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
14	WCI 12055
15	OVEN RACK (2)
16	WCI 5303016973
17	WCI 5303017712
18	RETAINER-LENS
19	5304524341 Frigidaire Lens
20	316538904 Frigidaire Oven Lamp Light
21	SOCKET HOUSING
22	316116400 Frigidaire Oven Light Socket
23	WCI 3051511
24	LINER OVEN BACK
25	PANEL-DUMMY WHITE
26	WCI 3131802
27	WCI 3131800
28	VENT BOX ASSEMBLY
29	BRACKET-INSTALLATION (2)
30	SHIELD-DRAWER
31	WCI 08068046
32	SHIELD-BAKE BURNER
33	WCI 3016975
34	SHIELD-CAPILLARY BULB
35	SUPPORT, CONTROL VALVE
36	WCI 3131831
37	WCI 3131833
38	SUPPORT-REAR OVN (2)
39	WCI 3131835
40	WCI 3131839
41	CLIP,BODYSIDE
43	GROMMET-MAINTOP
44	WCI 3131820
45	Baffle,oven burner
46	WCI 3131795
47	WCI 3131840
48	TERMINAL BLOCK
49	CHANNEL – MAIN WIRE
