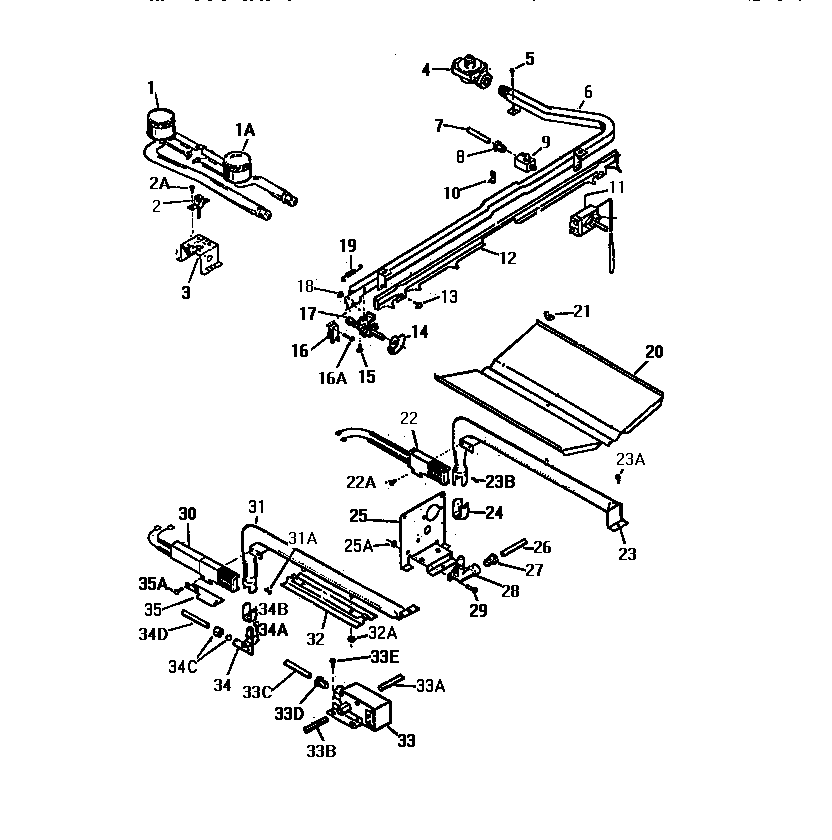

GF790HXW0 04 – BURNER ASSEMBLY

Products

Position	Product
1A	WCI Q301861
1	WCI Q301865
2	WCI Q301863
3	WCI Q301866
4	5308007974 Frigidaire Pressure Regulator
6	WCI Q301855
8	BUT - 3/8 LOXIT
9	VALVE
10	CLIP, CAP. TUBE
11	THERMOSTAT
12	WCI Q301857
13	WCI Q301839
14	WCI A22002000
15	WCI Q310002
16	WCI Q301874
16A	SCREW
17	WCI Q301873
18	NUT
19	WCI Q301869
20	BAFFLE
21	WING NUT
22	5303935066 Frigidaire Oven Flat Igniter 17" Leads
23	BURNER, BAKE
23A	WCI AP051056
25	SUPPORT
27	NUT
28	MIXER
29	5303292012 Frigidaire Oven Screw
30	5303935067 Frigidaire Range Oven Flat Igniter 3-1/4"
31	BURNER, BROIL
31A	SCREW
32	BAFFLE
32A	WCI AP265008
33B	TUBING
33D	WCI AP268040
33E	134154100 Frigidaire Screw 10-32 x 0.375 Co
33	VALVE
33C	WCI Q301868
34	MIXER
34B	SHUTTER
34D	TUBING
34C	NUT & FERRULE
35A	SCREW
35	SHIELD
