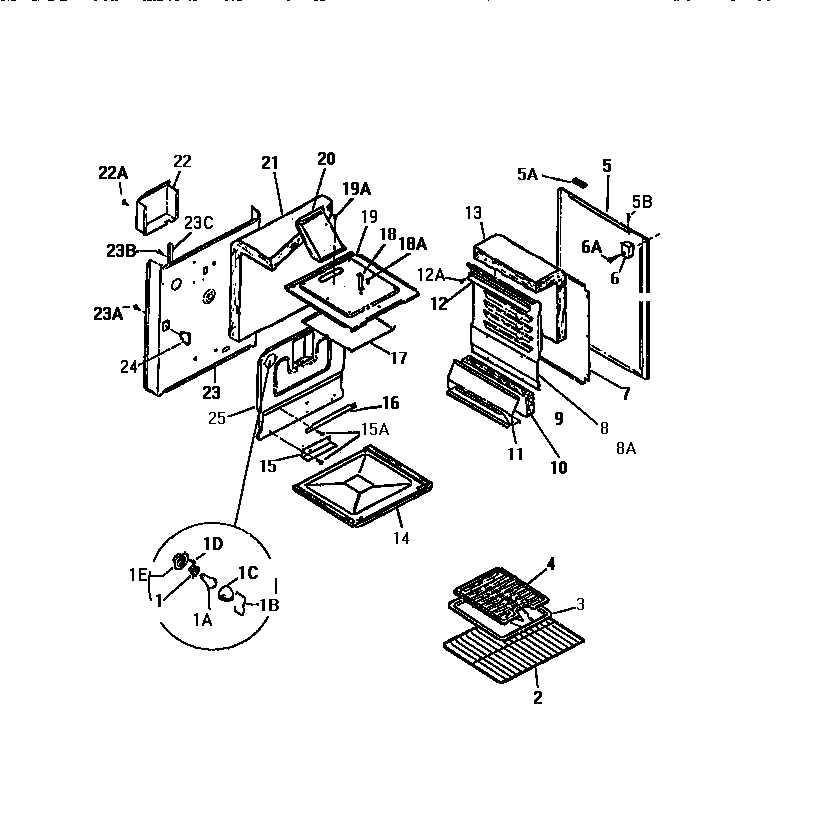

GF790HXW0 08 – OVEN & BODY

GF790HXW0 08 – OVEN & BODY

Written by

in

GF790HXW0 08 – OVEN & BODY

Products

Position	Product
1C	5304524341 Frigidaire Lens
1	WCI Q310061
1E	WCI Q310063
1B	RETAINING WIRE
1D	5304500008 Frigidaire Oven Screw
1A	WCI Q63749
2	WCI AP301046
3	PAN
4	GRID
5B	WCI AP172002
5	BOTTOM PANEL, RH & LH (WHITE)
5A	WCI Q301831
6	WCI Q310084
7	SHIELD
8A	LINING, SIDE, LH
8	LINING, SIDE, RH
10	INSULATION
11	RETAINER
12	SHIELD
13	INSULATION
14	LINING, BOTTOM
15	BRACKET
16	SUPPORT, BTM
17	WCI A9011000
18	BRACKET
19	LINING, TOP
20	WCI A92049000
21	INSULATION
22	WCI Q310040
23B	WCI AP051056
23	WCI A5081000
23C	WCI Q310003
24	WCI A74060000
25	WCI Q310078
