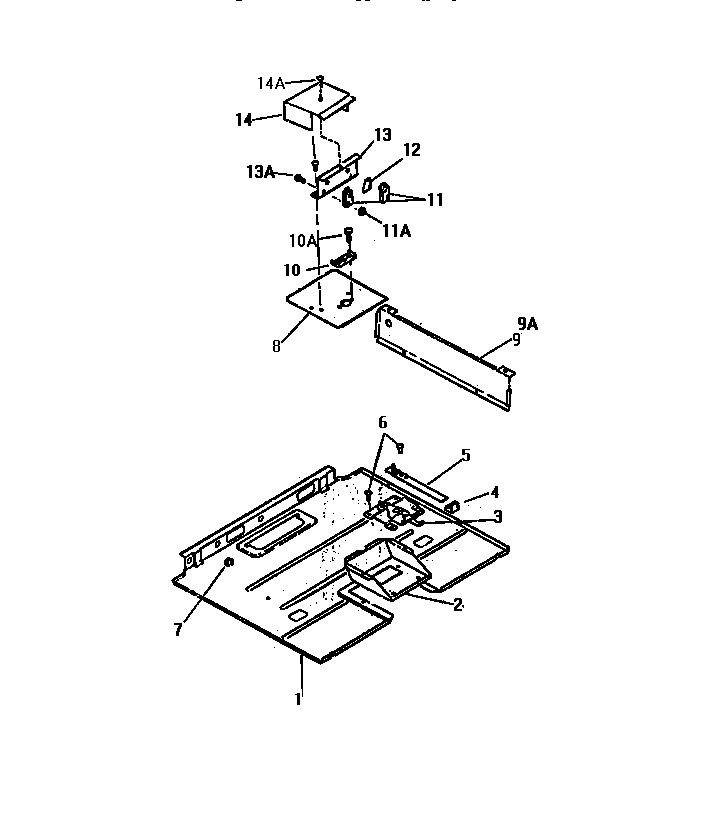

GF790HXW1 05 – BURNER PANEL

Products

Position	Product
1	WCI Q301904
2	SUPPORT, LATCH
3	LATCH, OVEN DOOR
4	KNOB
5	WCI Q301913
7	WCI AP074001
8	COVER, LATCH
9A	HEAT SHIELD, LH (NON-ILLUSTRATED)
9	HEAT SHIELD-RH
10A	WCI Q301839
10	WCI A2001000
11	SWITCH, MICRO
11A	NUT
12	INSULATOR
13	BRACKET
13A	SCREW
14	WCI Q301912
14A	WCI AP051056
