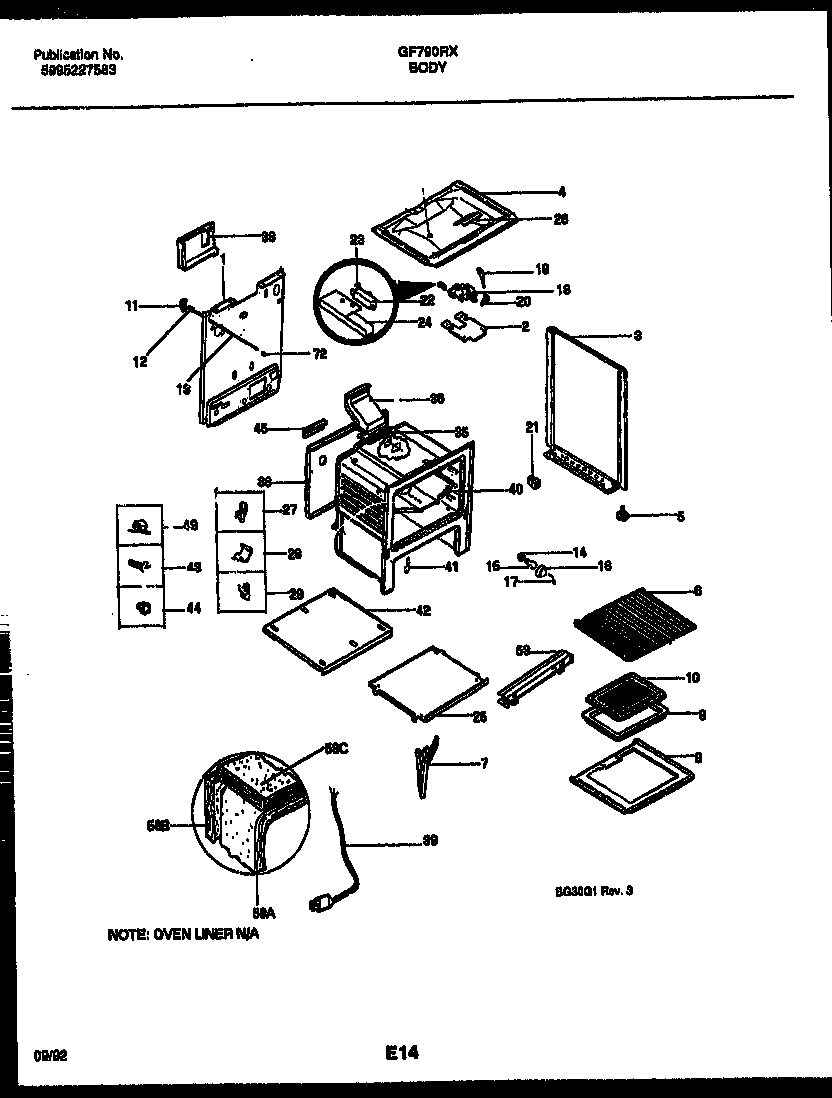

GF790RXD1 04 – BODY PARTS

Products

Position	Product
1	WCI 3203082
2	SHIELD-OVN TOP
3D	FASTENER-EDGE MTG (NOT ILLUSTRATED)
3E	WCI 08067992
3C	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3B	WCI 5303269545
3	WCI 5303269543
4	WCI 5303269487
5A	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5	SCREW-LEVELING
5B	ANTI-TIP KIT (NOT ILLUSTRATED)
6	316067902 Frigidaire Oven Rack
7	WCI 316007002
8A	316064600 Frigidaire Oven Support
8	BTTM-OVEN
9	PAN-BROILER
10	WCI 5303131356
11	WCI 5303131289
12	SWITCH-OVEN LITE DOOR
13	WCI 5303269501
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	RETAINER-GLASS
18A	SHIELD-LATCH (NON-ILLUSTRATED)
18	WCI 5303015453
19	WCI 5303131357
20A	WCI 08013188
20	WCI 3203218
21	SPACER-BODYSIDE, (8)
22A	STUD SPACER (2) (NON-ILLUSTRATED)
22	SWITCH-LATCH
23	FSTNR-PUSH ON
24	SHIELD-LATCH
25	WCI 3131313
26	WCI 08067757
27	5303284616 Frigidaire Range Bulb Clip Thermostat
28	CLIP-WIRE
29	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
33	SHIELD, REAR WALL
