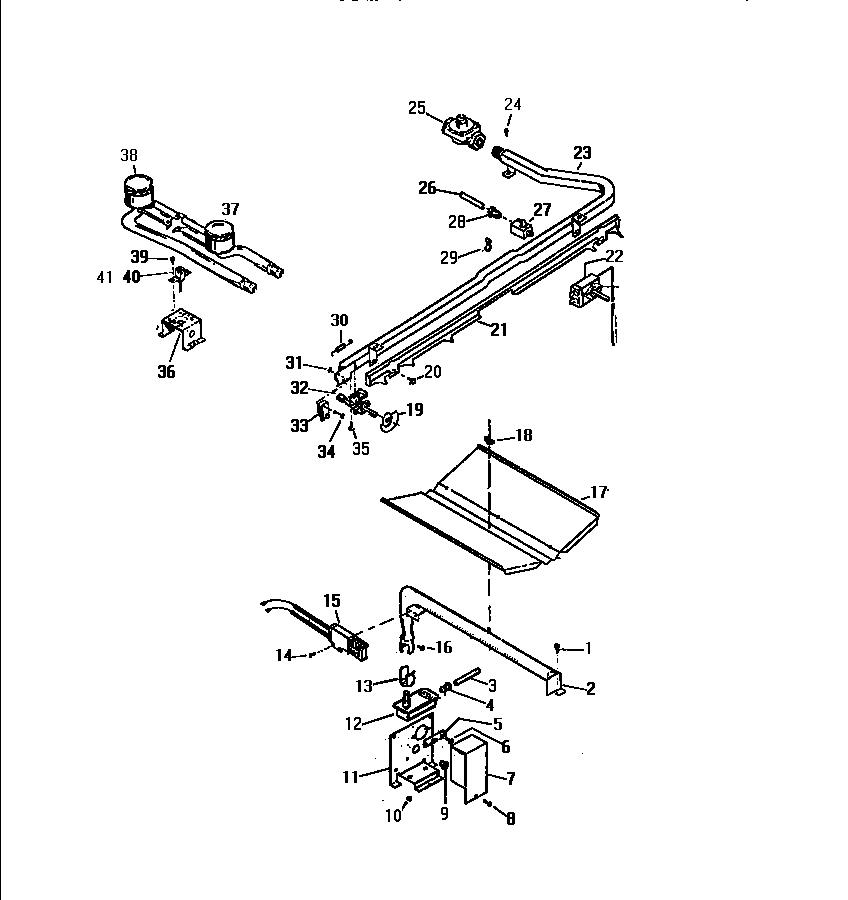

GF830HXD1 04 – BURNER ASSEMBLY

Products

Position	Product
2	BURNER
5	TERMINAL BLOCK
7	VALVE COVER
9	WCI AP074001
10	WCI AP265008
11	SUPPORT
12	WCI Q301871
13	SHUTTER
14	SCREW
15	5303935066 Frigidaire Oven Flat Igniter 17" Leads
16	SCREW
17	WCI A9010000
18	WING NUT
19	WCI A22002000
20	WCI Q301839
21	WCI Q301857
22	WCI Q301858
23	WCI Q301855
25	5308007974 Frigidaire Pressure Regulator
26	WCI Q301867
27	VALVE
28	BUT - 3/8 LOXIT
29	CLIP, CAP. TUBE
30	WCI Q301869
31	NUT
32	WCI Q301873
33	WCI Q301874
34	SCREW
35	WCI Q310002
36	WCI Q301866
37	WCI Q301861
38	WCI Q301865
39	WCI AP051056
40	WCI Q301862
41	WCI Q301864
