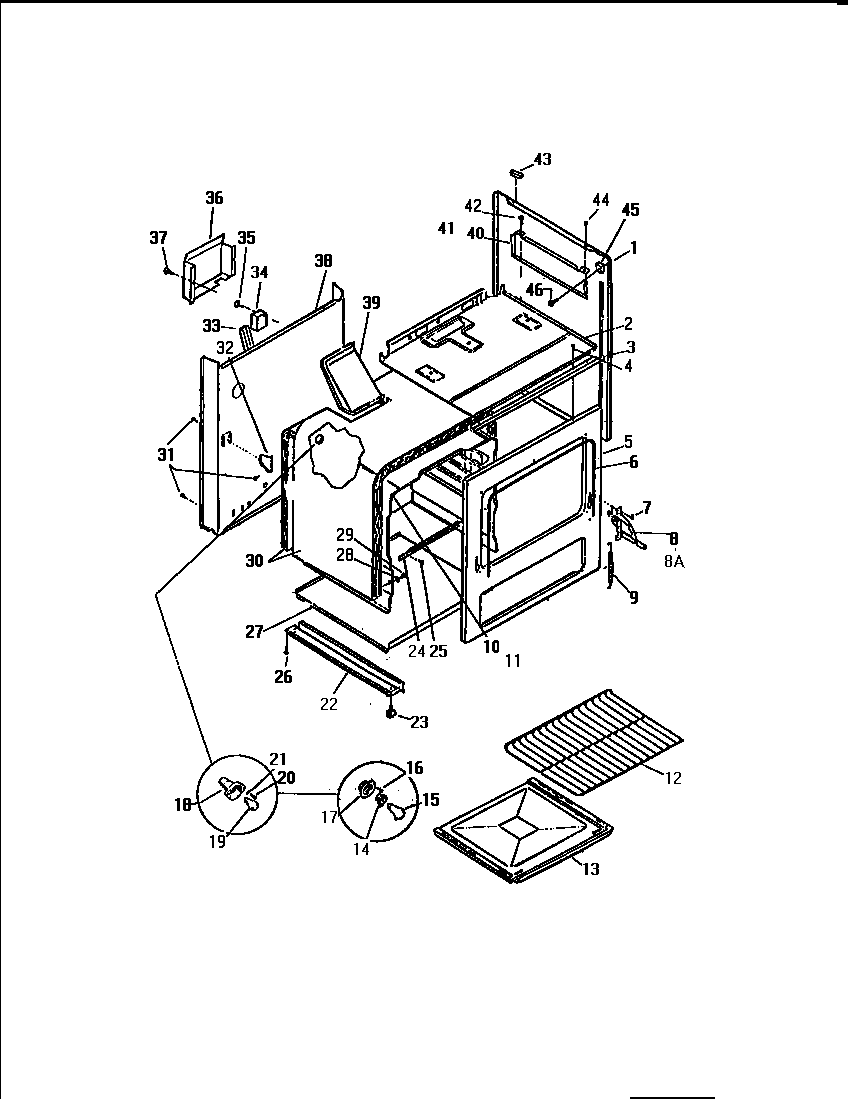

GF830HXF0 05 – BODY

Products

Position	Product
1	BOTTOM PANEL, LH & RH (COFFEE)
2	WCI Q301968
3	WCI A74076000
5	WCI Q301967
6	WCI AP326052
7	5304500008 Frigidaire Oven Screw
8	WCI A96068000
8A	318348801 Frigidaire Oven Left Side Door Hinge
9	SPRING
10C	WCI Q301978
10B	WCI Q301973
10	WCI Q301971
10A	WCI Q301972
12	WCI AP301046
13	WCI Q301977
18	WCI K1312472
19	WCI Q63749
20	WCI AP325009
22	BASE RAIL
23	WCI AP059009
24	SUPPORT, BTM
27	PANEL, BOTTOM
28	WCI AP391021
29	WCI AP051045
30	WCI Q134234
32	WCI A74060000
33	WCI Q310003
34	WCI Q301950
36	COVER, MODULE
38	WCI A5087000
39	WCI A92049000
40	WCI A64044000
41	HEAT SHIELD, LH (NON-ILLUSTRATED)
43	WCI Q301831
44	WCI AP172002
45	WCI Q310084
46	WCI AP051056
