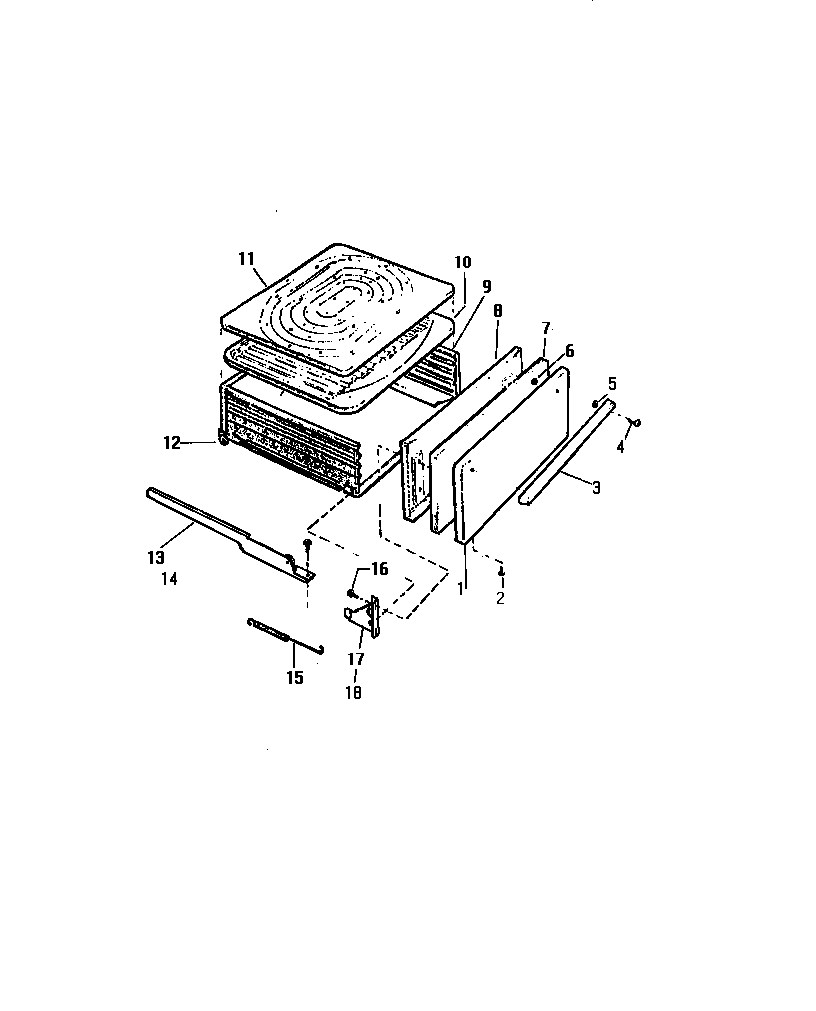

GF830HXF1 07 – BROILER DRAWER

GF830HXF1 07 – BROILER DRAWER

Written by

in

GF830HXF1 07 – BROILER DRAWER

Products

PositionProduct
1WCI A98349001
3WCI Q301884
45303292012 Frigidaire Oven Screw
5WCI Q61664
6WCI AP265008
7WCI Q138829
8WCI Q301882
9WCI Q301881
10WCI A53002000
11WCI A43001000
12WCI AP031004
13WCI A96070000
14WCI A96069000
15SPRING
16WCI AP051056
17WCI A43011000
18HINGE-RH
